Humimeter BL2-USB Universal Biomass Moisture Meter Kit with Hammer and Insertion Probes, up to 60% Water Content

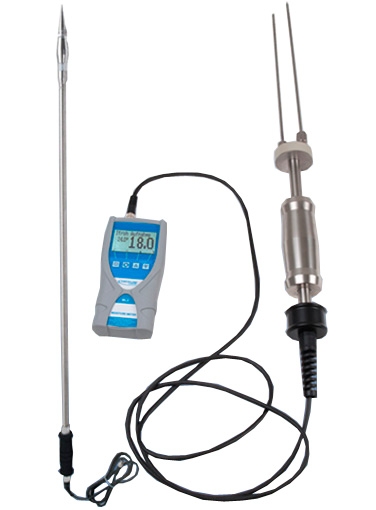

The Humimeter BL2-USB Universal Biomass Moisture Meter Kit with Hammer and Insertion Probes, up to 60% Water Content is specifically-designed for users who require a portable moisture meter to cover a wide range of biomass applications. It is supplied with both the insertion probe for wood chips, wood pellets and sawdust as well as the hammer Probe with short and long pins for measurement on round timber, split logs and hay and straw bales. The BL2 is supplied with several calibration curves that are automatically activated when a specific probe is connected. If more than one calibration is offered for the connected probe, it can be user-selected using the menu system. Measuring results are displayed instantly and are temperature compensated.
Automatic temperature compensation (set to C or F as required) Large, back-lit LCD display with Automatic averaging Temperature can be set to C or F as required BL2-KIT-USB is supplied with USB output including a PC software and data transfer cable Measurement within seconds without prior treatment of samples 2 Year Warranty Hold function, manual saving of results, data log for 10,000 logs within measuring point report Gauge menus in English, German, French, Italian, Spanish and Russian Memory for 10,000 data points Supplied in custom fitted wood carrying case
Resolution
0.1% water content
Measuring Range
up to 60% water content depending on material and probe type
Calibration Accuracy
less than 2.5 %
Material Temperature Range
0° - 40° C (104°F)
Temperature Limits
-10°C to 80°C (14°F to 176°F)
Menu Languages
English, German, French, Italian, Spanish and Russian
Housing Material
Plastic with rubber protection cover, IP40 rating
Data Logger
10,000 moisture measurements plus date, batch & temperature
Data Interface (BL2-USB Only)
USB (supplied with data transfer cable & software)
Display
backlight Graphic LCD (128 x 64 pixel)
Battery Type
4 x 1.5 Volt AA Alkaline batteries
Battery Life
900 measurements (with auto-off after 6 minutes of non-use)
Weight
6.4 Kg (Kit in Wooden case)
Dimensions
121 x 17.5 x 8cm (LxWxH) | 47.6" x 6.9" x 3.1" (LxWxH)
Warranty
2 Years
More Information
Product Specifications
Resolution
0.1% water content
Measuring Range
up to 60% water content depending on material and probe type
Calibration Accuracy
less than 2.5 %
Material Temperature Range
0° - 40° C (104°F)
Temperature Limits
-10°C to 80°C (14°F to 176°F)
Menu Languages
English, German, French, Italian, Spanish and Russian
Housing Material
Plastic with rubber protection cover, IP40 rating
Data Logger
10,000 moisture measurements plus date, batch & temperature
Data Interface (BL2-USB Only)
USB (supplied with data transfer cable & software)
Display
backlight Graphic LCD (128 x 64 pixel)
Battery Type
4 x 1.5 Volt AA Alkaline batteries
Battery Life
900 measurements (with auto-off after 6 minutes of non-use)
Weight
6.4 Kg (Kit in Wooden case)
Dimensions
121 x 17.5 x 8cm (LxWxH) | 47.6" x 6.9" x 3.1" (LxWxH)
Warranty
2 Years
Product Features
Automatic temperature compensation (set to C or F as required) Large, back-lit LCD display with Automatic averaging Temperature can be set to C or F as required BL2-KIT-USB is supplied with USB output including a PC software and data transfer cable Measurement within seconds without prior treatment of samples 2 Year Warranty Hold function, manual saving of results, data log for 10,000 logs within measuring point report Gauge menus in English, German, French, Italian, Spanish and Russian Memory for 10,000 data points Supplied in custom fitted wood carrying case
