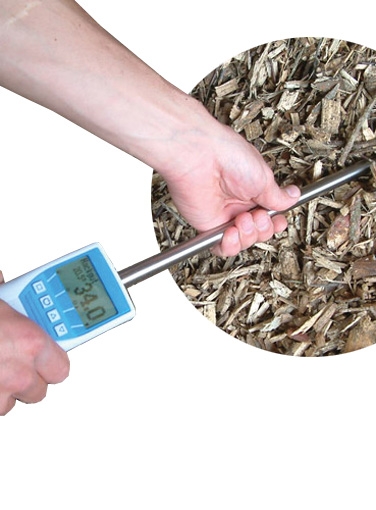

Humimeter BLL Moisture Meter for Wood Chips with Insertion Probe
The Humimeter BLL Moisture Meter for Wood Chips with Insertion Probe is a precision instrument that accurately measures the moisture content in Wood Chips with our BLL meter. One meter long insertion probe for easy measurement in deep piles of chips. The BLL is supplied with three (3) separate calibration curves, depending upon the physical makeup of the wood chips to measured. There are defined into the following classes as described in the European Standards as; Wood Chips, Coarse WC and Industry WC.
Directly mounted inserstion probe Conversion of wood moisture into water content Automatic averaging Sample temperature measurement Automatic temperature compensation Temperature can be set to C or F as required Measurement within seconds without prior treatment of samples Hold function, manual saving of results, data log for 10,000 logs within measuring point report Supplier's data can be recorded Large, well-lit LC display Length of insertion probe: 1 metre Optional: PC interface, software, datalink cable and printer 2 Year Warranty Gauge menus in English, German, French, Italian, Spanish and Russian Supplied in custom fitted wood carrying case Optional Wireless Kit offered for BLL-232 for cable-free transfer of data. (Details below)
Measuring range
up to 50% water content depending on material (represents 100% wood moisture)
Resolution
0.5% water content (0.5 °C or °F)
Accuracy
± 3%
Measurement Technique
Capacitance
Temperature Range for determination water content
0° - 40° C
Temperature Measurement Range
-10°C to + 80°C
Length of insertion probe
1 metre
Menu languages
English, German, French, Italian, Spanish and Russian
Housing
Plastic with IP40 rating
Data logger
10,000 moisture measurements plus date, batch & temperature
Data Interface (BLL-232 only)
RS-232, 9600/8/N/1 (supplied with transfer cable & USB converter)
Display
Graphic LCD display with backlight (128 x 64 pixel)
Temp Compensation
Automatic in °C or °F using built-in temperature probe
Power
4 x 1.5 Volt AA Alkaline batteries
Battery Life
900 measurements (with auto-off after 6 minutes of non-use)
More Information
Product Specifications
Measuring range
up to 50% water content depending on material (represents 100% wood moisture)
Resolution
0.5% water content (0.5 °C or °F)
Accuracy
± 3%
Measurement Technique
Capacitance
Temperature Range for determination water content
0° - 40° C
Temperature Measurement Range
-10°C to + 80°C
Length of insertion probe
1 metre
Menu languages
English, German, French, Italian, Spanish and Russian
Housing
Plastic with IP40 rating
Data logger
10,000 moisture measurements plus date, batch & temperature
Data Interface (BLL-232 only)
RS-232, 9600/8/N/1 (supplied with transfer cable & USB converter)
Display
Graphic LCD display with backlight (128 x 64 pixel)
Temp Compensation
Automatic in °C or °F using built-in temperature probe
Power
4 x 1.5 Volt AA Alkaline batteries
Battery Life
900 measurements (with auto-off after 6 minutes of non-use)
Product Features
Directly mounted inserstion probe Conversion of wood moisture into water content Automatic averaging Sample temperature measurement Automatic temperature compensation Temperature can be set to C or F as required Measurement within seconds without prior treatment of samples Hold function, manual saving of results, data log for 10,000 logs within measuring point report Supplier's data can be recorded Large, well-lit LC display Length of insertion probe: 1 metre Optional: PC interface, software, datalink cable and printer 2 Year Warranty Gauge menus in English, German, French, Italian, Spanish and Russian Supplied in custom fitted wood carrying case Optional Wireless Kit offered for BLL-232 for cable-free transfer of data. (Details below)
