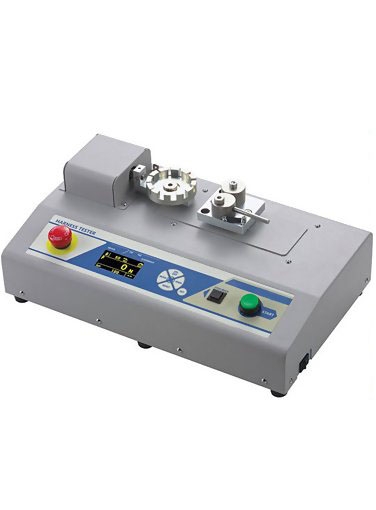

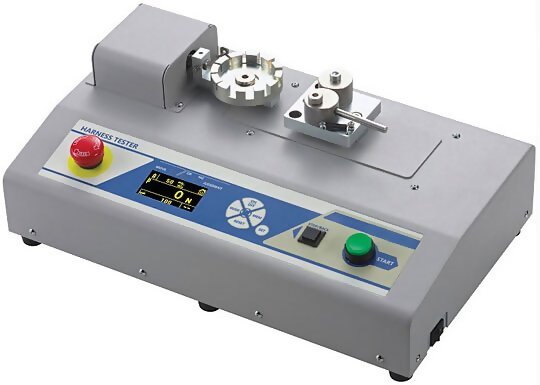

Imada ACT-220 Automatic Wire Crimp Tester with Load Holding, 220 lbs / 100 kg / 1000 N Capacity
The Imada ACT-220 Automatic Wire Crimp Tester with Load Holding, 220 lbs / 100 kg / 1000 N Capacity is designed to measure the strength of wire crimps, up to 220 lbf (1000 N). Standard load-holding feature allows pulls to set a target load and holds it for a user set amount of time for non-destructive testing. The tester conforms with UL 486A-B as well as other ASTM, MIL, ANSI/EIA, NASA, IEC and JIS crimp testing standards. See the specifications table for more details. The wire terminal grip has 12 slots which accommodate wire diameters from 18 AWG to 1 AWG (1-8 mm OD). Smaller test fixtures are also available.
Destructive and nondestructive test modes Force hold duration up to 999 seconds in 1 second increments Color-coded LED indicators for Go/No Go testing Selectable digital speeds 10/25/50/100 mm/min Save up to 26 test configurations in memory EL electro luminescent display is highly visible in the dark or bright sunlight Time and date stamp Selectable units: lbf, kgf, and N 1,500 data memory for recall or download (RS-232C output) Kit includes, terminal grip, wire cam grip, ACT Logger data acquisition software, USB cable, calibration cert traceable to NIST Many optional crimp attachments available
Resolution
0.1 lbf, 1N, 0.1 kgf
Accuracy
±0.5% F.S. ±1 digit
Force Units
lbf, N, kgf (selectable)
Overload Rating
Approx. 150% F.S.
Speed Ranges
10/25/50/100 mm/min or 0.5, 1.0, 2.0, 4.0 in/min (Selectable)
Hold Duration
up to 999 seconds in 1 second increments
Stroke
Approx. 50mm
Sample Diameters
12 slots, 1 to 8mm
Sample Length
100mm (4") or more
Test Modes
BREAK (destructive)/KEEP (non-destructive) modes
Test Profiles
Saves up to 26 patterns (A to Z)
Internal Memory
1500 data
Outputs
USB/RS232C (for printer output)/Judgment signal (OK/NG)
Operating Conditions
0° to 40° Celsius, 20 to 80%RH
Standards
ACT-220 meets test conditions of wire crimp test standards. Review the details of the following standards
Warranty
2 Years
Imada ACT-220 Automatic Wire Crimp Tester ACT Logger data acquisition software 3-Point Certificate traceable to NIST
More Information
Product Specifications
Resolution
0.1 lbf, 1N, 0.1 kgf
Accuracy
±0.5% F.S. ±1 digit
Force Units
lbf, N, kgf (selectable)
Overload Rating
Approx. 150% F.S.
Speed Ranges
10/25/50/100 mm/min or 0.5, 1.0, 2.0, 4.0 in/min (Selectable)
Hold Duration
up to 999 seconds in 1 second increments
Stroke
Approx. 50mm
Sample Diameters
12 slots, 1 to 8mm
Sample Length
100mm (4") or more
Test Modes
BREAK (destructive)/KEEP (non-destructive) modes
Test Profiles
Saves up to 26 patterns (A to Z)
Internal Memory
1500 data
Outputs
USB/RS232C (for printer output)/Judgment signal (OK/NG)
Operating Conditions
0° to 40° Celsius, 20 to 80%RH
Standards
ACT-220 meets test conditions of wire crimp test standards. Review the details of the following standards
Warranty
2 Years
Product Features
Destructive and nondestructive test modes Force hold duration up to 999 seconds in 1 second increments Color-coded LED indicators for Go/No Go testing Selectable digital speeds 10/25/50/100 mm/min Save up to 26 test configurations in memory EL electro luminescent display is highly visible in the dark or bright sunlight Time and date stamp Selectable units: lbf, kgf, and N 1,500 data memory for recall or download (RS-232C output) Kit includes, terminal grip, wire cam grip, ACT Logger data acquisition software, USB cable, calibration cert traceable to NIST Many optional crimp attachments available
