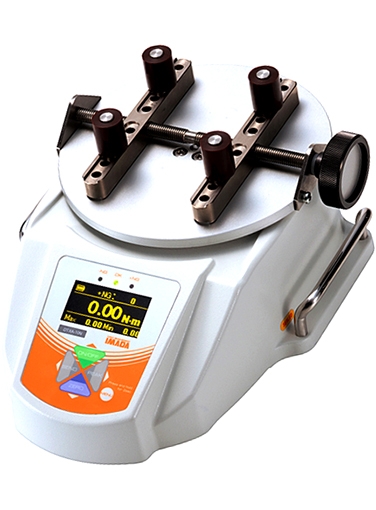

Imada CAP-DTXS Cap Torque Testers
The Imada CAP-DTXS Cap Torque Testers is the easy-to-use, high-precision cap torque tester that features a large electroluminescent display that clearly indicates the real-time and peak torque. Color-coded LED indicators alert the user to Go/NoGo conditions. Orange lights indicate a value less than low setpoint, green lights between high and low, and red for over the high.
Test cap loosening (CCW) and tightening (CW) torque Selectable real time and peak modes USB, RS-232, Digimatic and Analog outputs Selectable units of lbf-in, kgf-cm, N-m, ozf-in, N-cm 1000 data point memory capacity Programmable high/low setpoints with color-coded LED indicators and audible signal Overload and low battery indicators 200% overload capacity DTXS accommodates samples from 20 up to 160 mm (0.787" - 6.30") Four rubber-coated 1 inch pegs are included with DTXS Optional "Small Table" accommodates samples from 7 up to 50 mm (0.275" - 2") Optional Peg sizes/material available Include 3 Point Calibration Certificate traceable to NIST. ISO 17025 Calibration Certification optionally available 2 Year Warranty
Accuracy
±0.5%F.S.±1digit
Unit of measurement
lbf-in, kgf-cm, N-m, ozf-in, N-cm
Display
4-digit
Display update
10 times/ sec
Auto Zero Reset
1.0 to 60 seconds (selectable)
Sampling rate
2,000 samples/second (max) thru the USB port
Safe overload rating
Approx. 200%
Operating Environment
Temperature
Output
Outputs USB, RS-232C, Digimatic and ± 2 VDC analog output (D/A),Comparator 3 steps (-NG/OK/+NG), Overload alarm
Overload warning
Approx.110%F.S. (Warning message and alarm)
Sensitivity
Max, High, Medium, Low (selectable)
External connecting switch
SEND (a point of contact holding), Zero reset, Peak, ON/OFF setting
Auto Power Off
5, 10, minutes or OFF (selectable)
Power
Built-In Rechargeable Ni-MH battery pack or via AC-Adapter (100-240V AC)
Battery Life
approx. 8 hours (recharge time approx. 10 hours)
Battery Indicator
Indicates three charge states high, medium and low
Plug Type
USA Blade Type (Select Euro Plug Adapter for use in 230V Countries)
Weight
Approx. 10 Lbs/4.5kg (Including Standard table and Standard pins)
Warranty
2-Years
More Information
Product Specifications
Accuracy
±0.5%F.S.±1digit
Unit of measurement
lbf-in, kgf-cm, N-m, ozf-in, N-cm
Display
4-digit
Display update
10 times/ sec
Auto Zero Reset
1.0 to 60 seconds (selectable)
Sampling rate
2,000 samples/second (max) thru the USB port
Safe overload rating
Approx. 200%
Operating Environment
Temperature
Output
Outputs USB, RS-232C, Digimatic and ± 2 VDC analog output (D/A),Comparator 3 steps (-NG/OK/+NG), Overload alarm
Overload warning
Approx.110%F.S. (Warning message and alarm)
Sensitivity
Max, High, Medium, Low (selectable)
External connecting switch
SEND (a point of contact holding), Zero reset, Peak, ON/OFF setting
Auto Power Off
5, 10, minutes or OFF (selectable)
Power
Built-In Rechargeable Ni-MH battery pack or via AC-Adapter (100-240V AC)
Battery Life
approx. 8 hours (recharge time approx. 10 hours)
Battery Indicator
Indicates three charge states high, medium and low
Plug Type
USA Blade Type (Select Euro Plug Adapter for use in 230V Countries)
Weight
Approx. 10 Lbs/4.5kg (Including Standard table and Standard pins)
Warranty
2-Years
Product Features
Test cap loosening (CCW) and tightening (CW) torque Selectable real time and peak modes USB, RS-232, Digimatic and Analog outputs Selectable units of lbf-in, kgf-cm, N-m, ozf-in, N-cm 1000 data point memory capacity Programmable high/low setpoints with color-coded LED indicators and audible signal Overload and low battery indicators 200% overload capacity DTXS accommodates samples from 20 up to 160 mm (0.787" - 6.30") Four rubber-coated 1 inch pegs are included with DTXS Optional "Small Table" accommodates samples from 7 up to 50 mm (0.275" - 2") Optional Peg sizes/material available Include 3 Point Calibration Certificate traceable to NIST. ISO 17025 Calibration Certification optionally available 2 Year Warranty
Downloads
