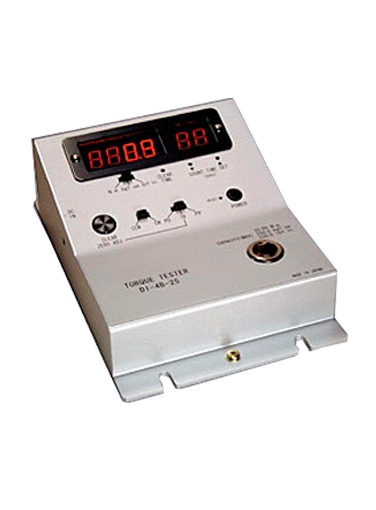

The Imada Cedar DI-4B-25 Digital Torque Tester for Air Tools and Impact Wrenches, 220 lbf-in/ 250 Kgf-cm is a fast response torque tester that is perfectly suited for on-the-spot calibration of air tools and impact drivers, but will calibrate any type of manual wrenches as well. This torque tester gives a digital readout of peak value in either direction and also indicate the number of blows for a selected time period. The Imada Cedar DI-4B-25 Digital Torque Tester for Air Tools and Impact Wrenches has an accuracy of ±0.5%, ±1 LSD, Peak, Real Time and Peak Down modes, and provides peak data for SPC (statistical process control) via the RS232 port
The DI-4B-25 is supplied as a complete kit including torque tester, joint simulators, ac adapter/charger, operating instructions and calibration certificate
The DI-4B-25 is supplied as a complete kit including torque tester, joint simulators, ac adapter/charger, operating instructions and calibration certificate
Product Features
Heavy duty metal construction
Displays number of blows for selected period (0.1 - 9.9 sec)
Selectable Units: lb-ft, kg-m and N-m
Both clockwise and counterclockwise operation
RS-232 peak data output for SPC capability
Peak, Real Time and Peak Down measuring mode (selectable)
Runs on internal NiCad batteries (8 hour use)
Soft joint, hard joint and AC adapter/charger included
ISO/IEC 17025 Long-form Certificate & Test Data is optionally available
