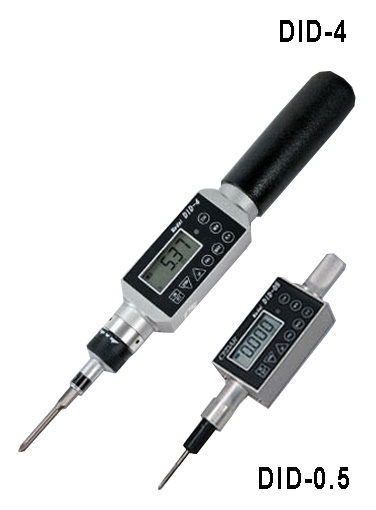

The Imada Cedar DID Digital Torque Screwdriver is a torque measuring manual screw driver designed for lab and production use. The large LCD display measures bi-directional torque in real-time or peak modes. USB data output allows the user to graph torque vs time with optional SW-1SD software. The Imada Cedar DID Digital Torque Screwdriver is a Torque Screwdriver that has an accuracy of +/- 0.5% F.S., +/-1 LSD and has programmable set-points that provide both an audible beep and green/red LED indicator for uniform tightening or GO/NO GO testing. In addition, it features a programmable counter that minimizes assembly errors by identifying mis-tightening and/or defective screws. Built-in ratcheting clutch allows for convenient tightening or loosening. Use the 800 internal memory for data recall or USB download for SPC.The Imada Cedar DID substantially reduces scrap and rework costs by eliminating over and undertightening and is ideal for use in a wide variety of applications including the manufacture of electronic, appliance and aerospace assemblies.
Model DID-4 is sold in kits which includes the tester/screwdriver, two (2) 1/4" Phillips tips, Universal (100-240V) AC adapter/charger and carrying case.
Model DID-4 is sold in kits which includes the tester/screwdriver, two (2) 1/4" Phillips tips, Universal (100-240V) AC adapter/charger and carrying case.
Product Features
Cedar Digital Torque Screwdriver with Memory & USB Data Output
Units of measure: lb-in, oz-in, kg-cm, N-cm and N-m
Programmable High and Low set points with both audible beep and Green/Red LED indicator for uniform torque tightening or GO/NO GO testing
Peak, Real Time and Peak Down measuring mode (selectable)
Statistics: number of data, Max, Min, Avg
Programmable screw tightening counter
CW, CCW ratchet and fixed operation
bluedot Runs on internal NiCad batteries (8 hour use) Auto shut-off after 10 min. of non-use
Selectable units ozf-in, lbf-in, kgf-cm, N-cm and N-m
USB data output for SPC capability
800 data memory for recall or for SPC download
Programmable Auto Zero function resets unit to zero for easy operation
Ergonomic and light weight, yet ruggedly constructed
1/4" Phillips tips, AC charger and carrying case included
