The Imada DST Digital Force Gauge is Imada DST Digital Force Gauge are simple-to-use basic gauges featuring user-friendly menu operation. Selections including unit and measuring mode can be locked to prevent accidental changes. The Imada DST Digital Force Gauge is Image DST large backlit LCD display can be configured in basic format to show value, unit and measuring mode or multi-line format to display peak and real time values simultaneously. Additional features include reversible display and high/low setpoints with OK indicator for Go/No Go testing. The Imada DST Digital Force Gauge is gauges have a 30,000/sec sampling rate. Collect The Imada DST Digital Force Gauge is data via USB or RS-232 connections with The Imada DST Digital Force Gauge is Force Logger or SW-1X software (Both Optional)
Approx. 30 hours backlight off Approx. 14 hours backlight on 4.5 hours required for full charge
Battery Indicator
Battery icon displays three levels of charge
Power Supply
Rechargeable NiMH batteries (approx. 30 h continuous use without background light, approx. 14 h with background light, approx. 4.5 h charging time). Charging occurs with AC adapter or by connection via USB cable to a PC or a mobile battery.
Rechargeable NiMH batteries (approx. 30 h continuous use without background light, approx. 14 h with background light, approx. 4.5 h charging time). Charging occurs with AC adapter or by connection via USB cable to a PC or a mobile battery.
Approx. 30 hours backlight off Approx. 14 hours backlight on 4.5 hours required for full charge
Battery Indicator
Battery icon displays three levels of charge
Power Supply
Rechargeable NiMH batteries (approx. 30 h continuous use without background light, approx. 14 h with background light, approx. 4.5 h charging time). Charging occurs with AC adapter or by connection via USB cable to a PC or a mobile battery.
Rechargeable NiMH batteries (approx. 30 h continuous use without background light, approx. 14 h with background light, approx. 4.5 h charging time). Charging occurs with AC adapter or by connection via USB cable to a PC or a mobile battery.
Die-cast aluminium
Mounting threads for test stand
4 x M4, Depth 8 mm
Plug Gauge
M6 Male Thread
Operating Temperature
32° to 100°F (0° to 40°C)
Air Humidity
20 – 80 % RH
Dimensions
181 x 72 x 32 mm (LxWxH)
Weight, net (gross)
Approx. 460 g (approx. 1300 g)
Warranty
2 Years
Product Features
Backlit LCD display with user-friendly menus
Setting security lock prevents accidental changes
Ergonomic, durable, heavy-duty metal construction
30,000/sec sampling rate
Selectable real time or peak mode operation
Programmable High/Low setpoints with OK indicator
USB and RS-232C output
Push-button tare function
Overload capacity 200% F.S.; display flashes at overload limit
Runs on internal Ni-MH batteries (user replaceable) or AC adapter; charge with USB port or portable charger

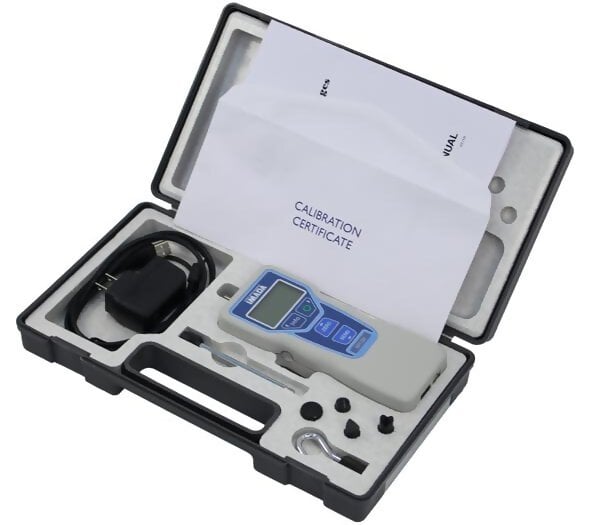

DST kit includes set of six attachments, AC charger/adapter, calibration cert traceable to NIST and carrying case.
