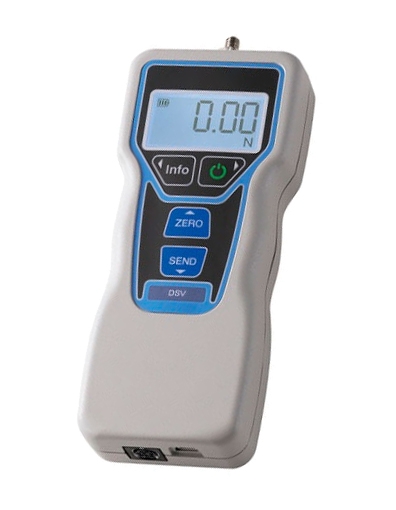

Imada DSV Vector Force Gauge
The Imada DSV Vector Force Gauge is a simple-to-use basic gauge featuring user-friendly menu operation. The built-in tilt sensor with audible alert warns users of deviations from the reference angle. Selections including unit and measuring mode can be locked to prevent accidental changes.
Includes NIST Traceable Calibration Certificate - ISO-17025 calibration certificate option available Tilt Sensor: Alerts user to deviation from the reference angle Backlit LCD display with user-friendly menus Ergonomic, durable, heavy-duty metal construction 30,000/sec ultra-high sampling rate 1,000 Data memory; automatically calculates Max, Min, Avg statistics USB and RS-232C output Selectable real time or peak mode operation Setting security lock prevents accidental changes Overload capacity 200% F.S.; Display flashes at overload limit Runs on internal Ni-MH batteries (user replaceable) or AC adapter; Charges with USB port or portable charger 2-Year Warranty
Tilt Alarm
OFF, Strict (4°), Normal (8°) or Loose (18°)
Accuracy
± 0.2% F.S., ± 1 LSD
Selectable Units
lbf(ozf), kgf(gf) or Newtons
Display
4 digit backlit LCD
Overload Capacity
Approx. 200% of F.S.
Overload Alarm
Audible alarm at 90% of capacity; Audible alarm and indicator flashes beyond 110% of F.S.
Sampling Rate
30,000/second
Internal Memory
1,000 data with statistics
Battery Life
Approx. 30 hours backlight off Approx. 14 hours backlight on 4.5 hours required for full charge
Battery Indicator
Battery icon displays three levels of charge
Setpoints
Programmable high/low setpoints with OK indicator
Outputs
USB, RS-232C
Operating Temp.
32° to 100°F (0° to 40°C)
Accessories Included
AC adapter, Attachments (hook, flat tip, conical tip, chisel tip, notched tip, extension shaft), Carrying Case
Imada DSV Vector Force Gauge NIST Traceable Calibration Cert Set of six standard attachments AC adapter/charger Instruction Manual Carrying Case
More Information
Product Specifications
Tilt Alarm
OFF, Strict (4°), Normal (8°) or Loose (18°)
Accuracy
± 0.2% F.S., ± 1 LSD
Selectable Units
lbf(ozf), kgf(gf) or Newtons
Display
4 digit backlit LCD
Overload Capacity
Approx. 200% of F.S.
Overload Alarm
Audible alarm at 90% of capacity; Audible alarm and indicator flashes beyond 110% of F.S.
Sampling Rate
30,000/second
Internal Memory
1,000 data with statistics
Battery Life
Approx. 30 hours backlight off Approx. 14 hours backlight on 4.5 hours required for full charge
Battery Indicator
Battery icon displays three levels of charge
Setpoints
Programmable high/low setpoints with OK indicator
Outputs
USB, RS-232C
Operating Temp.
32° to 100°F (0° to 40°C)
Accessories Included
AC adapter, Attachments (hook, flat tip, conical tip, chisel tip, notched tip, extension shaft), Carrying Case
Product Features
Includes NIST Traceable Calibration Certificate - ISO-17025 calibration certificate option available Tilt Sensor: Alerts user to deviation from the reference angle Backlit LCD display with user-friendly menus Ergonomic, durable, heavy-duty metal construction 30,000/sec ultra-high sampling rate 1,000 Data memory; automatically calculates Max, Min, Avg statistics USB and RS-232C output Selectable real time or peak mode operation Setting security lock prevents accidental changes Overload capacity 200% F.S.; Display flashes at overload limit Runs on internal Ni-MH batteries (user replaceable) or AC adapter; Charges with USB port or portable charger 2-Year Warranty
