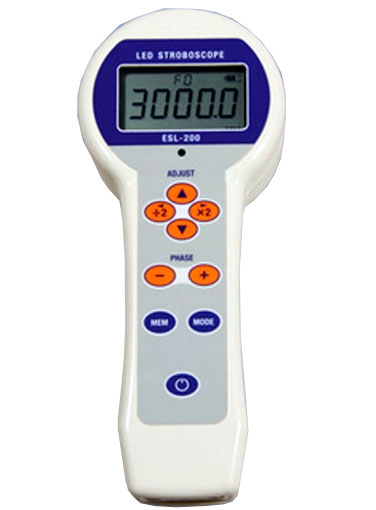

Imada ESL-200 Portable LED Stroboscope, 6.0 - 150,000 fpm / rpm
The Imada ESL-200 Portable LED Stroboscope, 6.0 - 150,000 fpm / rpm is a super bright, hand held, fully featured LED stroboscope in a compact design. The ESL-200 LED stroboscope is designed to measure the speed of rotating or cycling linear motion objects without contact or reflective tape, as well as freeze motion visually. Lifetime LED lights using pulse width modulation, encased in an aluminum housing, and powered by a NiMH rechargeable battery, make this pocket strobe extremely durable and capable of high flash rates. The Imada ESL-200 is an ideal inspection strobe for for speed, motion and vibration analysis, such as rotating shafts, fans, cams, etc. Adjustable Flash Duration. For most applications standard flash duration works without adjustment. For utra high rpm or larger objects rotating with high surface speed, ESL-200 features adjustable flash duration.
High efficiency LED solid-state light source Extended battery life of 10 hours continuous use at 6,000 fpm/rpm Pulse Width Modulation for sharp images at high speed Highly stable drift free operation Auto wide measuring range up to 150,000 fpm/rpm (over 100,000 display flashes) Push button operation with x2 and 2 buttons for easy and precise adjustment 359 Digital phase shift adjustment by 1 increments Rugged aluminum housing compact size weighs only 1.2 lb (540 g) Easy-to-read 5 digit 0.47" (12 mm) high LCD Store up to 19 flash rates in memory for records or quick retests (Restarts at the last flash rate) External trigger input and output Tripod mountable Kit includes stroboscope, AC Adapter/charger, and carrying case
Measuring Range
6.0 - 150,000 fpm/rpm
Resolution
±0.1 fpm/rpm (6.0 to 9999.9 fpm/rpm) ±1 fpm/rpm (10000 to 120000 fpm/rpm)
Accuracy
±0.01%, ±1 LSD
Display
12mm high, 5digit LCD
Brightness
4300 LUX 6,000 FPM, at 8" distance, flash duration F0
Power
NiMH Rechargeable battery with Universal 100-240V adapter
Battery Life
6 hours continuous use at 6,000 fpm/rpm, Power save mode 12 hours continuous use at 6,000 fpm/rpm
Operating Temp
0 - 45 C
Weight
1.2 lb/540g
Housing Material
Aluminum
Tripod Mount
1/4-20 UNC on backside
Phase Shift
with external trigger
Warranty
2 years

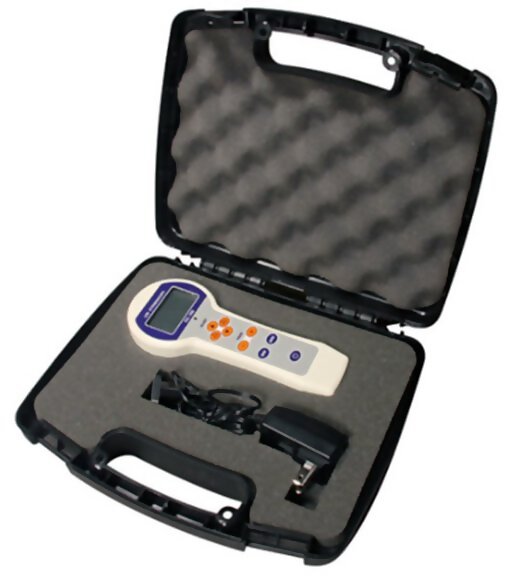

Imada ESL-200 Portable LED Stroboscope Universal AC-Adapter/Charger NIST-Traceable Calibration Certificate Instruction Manual
More Information
Product Specifications
Measuring Range
6.0 - 150,000 fpm/rpm
Resolution
±0.1 fpm/rpm (6.0 to 9999.9 fpm/rpm) ±1 fpm/rpm (10000 to 120000 fpm/rpm)
Accuracy
±0.01%, ±1 LSD
Display
12mm high, 5digit LCD
Brightness
4300 LUX 6,000 FPM, at 8" distance, flash duration F0
Power
NiMH Rechargeable battery with Universal 100-240V adapter
Battery Life
6 hours continuous use at 6,000 fpm/rpm, Power save mode 12 hours continuous use at 6,000 fpm/rpm
Operating Temp
0 - 45 C
Weight
1.2 lb/540g
Housing Material
Aluminum
Tripod Mount
1/4-20 UNC on backside
Phase Shift
with external trigger
Warranty
2 years
Product Features
High efficiency LED solid-state light source Extended battery life of 10 hours continuous use at 6,000 fpm/rpm Pulse Width Modulation for sharp images at high speed Highly stable drift free operation Auto wide measuring range up to 150,000 fpm/rpm (over 100,000 display flashes) Push button operation with x2 and 2 buttons for easy and precise adjustment 359 Digital phase shift adjustment by 1 increments Rugged aluminum housing compact size weighs only 1.2 lb (540 g) Easy-to-read 5 digit 0.47" (12 mm) high LCD Store up to 19 flash rates in memory for records or quick retests (Restarts at the last flash rate) External trigger input and output Tripod mountable Kit includes stroboscope, AC Adapter/charger, and carrying case
