Imada HTGS Digital Torque Gauge

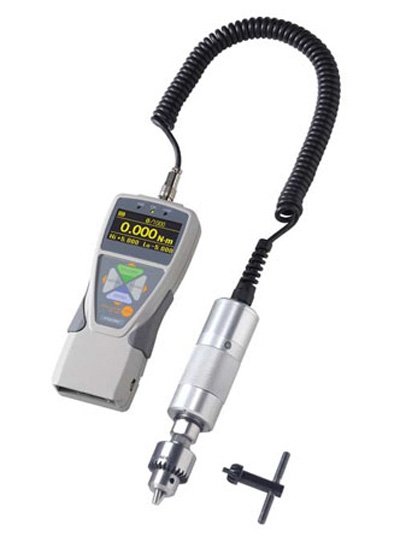

The Imada HTGS Digital Torque Gauge is a precision instrument that features a remote torque sensor with a Jacobs chuck. The chuck is designed to grip a test sample, a screwdriver bit or a wide range of other fixtures. The Imada HTGS measures torque in both clockwise and counter-clockwise directions. The display shows measurements in lbf-in, ozf-in, kgf-cm, or N-cm. The Imada HTGS torque tester features easy to use menus to make programming simple. Select units, reverse the display, set high/low setpoints, and set all other functions using plain language menus.
Programmable high/low setpoints with color-coded LED indicators and output signal for quick Go/No Go testing USB (virtual COM port), RS-232C, Digimatic and Analog outputs lbf-in, ozf-in, N-m, N-cm, kgf-m, kgf-cm units are selectable 1,000 data memory for recall or download Internal Ni-MH batteries or AC adapter Overload alarm and output signal Ergonomic design, non-slip grips, heavy duty metal construction Sample and transmit 2,000 data/sec using optional Force Recorder software Overload capacity 200% of F.S. Real time and peak mode (selectable)
Accuracy
+- 0.5% +- 1 LSD
Selectable Units
lbf-in, ozf-in, N-m, N-cm, kgf-m, kgf-cm
Overload Capacity
200% of F.S. (Overload indicator flashes beyond 110% of F.S.)
Power
Rechargeable Ni-MH battery pack or AC adapter
Battery Indicator
Indicates three charge states high, med and low
Memory
Non-volative, recall up to 1,000 data
Setpoints
Programmable high/low setpoints w/ color-coded LEDs and output signal
Outputs
USB (virtual COM port), RS-232C, Digimatic and +- 2 VDC analog output
Operating Temperature
32° to 100°F (0° to 40°C)
Imada HTGS Digital Torque Gauge Display Sensing chuck ZT Logger data acquisition software USB cable Allen wrench AC adapter/charger "85" ranges also include handle Calibration cert traceable to NIST
More Information
Product Specifications
Accuracy
+- 0.5% +- 1 LSD
Selectable Units
lbf-in, ozf-in, N-m, N-cm, kgf-m, kgf-cm
Overload Capacity
200% of F.S. (Overload indicator flashes beyond 110% of F.S.)
Power
Rechargeable Ni-MH battery pack or AC adapter
Battery Indicator
Indicates three charge states high, med and low
Memory
Non-volative, recall up to 1,000 data
Setpoints
Programmable high/low setpoints w/ color-coded LEDs and output signal
Outputs
USB (virtual COM port), RS-232C, Digimatic and +- 2 VDC analog output
Operating Temperature
32° to 100°F (0° to 40°C)
Product Features
Programmable high/low setpoints with color-coded LED indicators and output signal for quick Go/No Go testing USB (virtual COM port), RS-232C, Digimatic and Analog outputs lbf-in, ozf-in, N-m, N-cm, kgf-m, kgf-cm units are selectable 1,000 data memory for recall or download Internal Ni-MH batteries or AC adapter Overload alarm and output signal Ergonomic design, non-slip grips, heavy duty metal construction Sample and transmit 2,000 data/sec using optional Force Recorder software Overload capacity 200% of F.S. Real time and peak mode (selectable)
