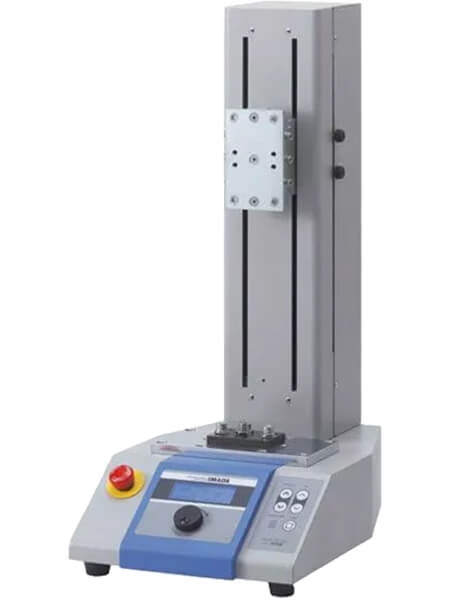

The Imada MX-275 Motorized Vertical Test Stand is a test stand that offers advanced force testing. The combination of screw drive system and state-of-the-art brushless motor provides extremely smooth and powerful operation over the entire speed range. Connect the Imada MX-275 Motorized Vertical Test Stand with a Z2 or ZP Series force gauge and enable force controlled testing. High/Low Set Point Force Control Force control is activated when the applied force is at or between the high and low set point(s) of the Z Series force gauge and is deactivated by the digital timer. Initial carriage speed is controlled by the variable or fixed speed settings. One Way Force Control Initial carriage speed is controlled by the variable or fixed speed settings. When the applied force reaches the low set point of the Z Series force gauge, the test stand’s carriage speed is adjusted to 20% of maximum and decreases to zero as the applied force reaches the high set point. Ideal for non-destructive testing. Speed control, quick switch and emergency stop are standard features. Optional timer and digital distance meter available.
