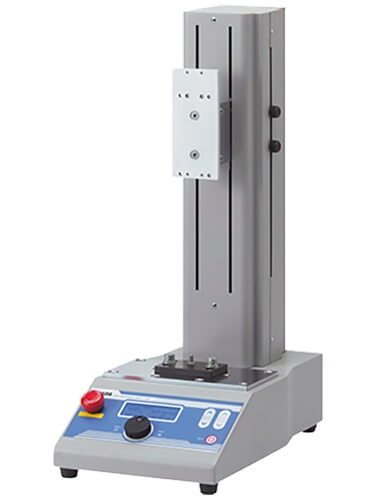

The Imada MX2-550-S High Performance Motorized Test Stand with Distance Meter, 550 lbs Capacity is a precision instrument that provide smooth and powerful operation to ensure consistent force testing results. Imada MX2 features a unique jog movement control, for precise increment testing. MX2 Program dial and LCD interface In cycle mode, automated fatigue tests are easy to setup. Press the unique program dial and turn, to make selections from the menu screens and set mode, speed, test duration, units and cycles. Control start and return speeds independently. Force controlled non-destructive tests are also easy to setup and program. Connect an Imada Z Series force gauge to the MX2 test stand to enable the following force controlled tests and Conditional Overload Prevention. Initial cross head speed is controlled by the start speed setting. Force control activates when applied force exceeds the low setpoint (and below the high setpoint) on the Z Series force gauge. The cross head maintains that force for the programmed interval and then uses return speed to reset for the next cycle. Initial cross head speed is controlled by the start speed setting. When the applied force reaches the low set point of the Z Series force gauge, the test stand engages the measuring speed setting and stops when the applied force reaches the high set point on the Z series force gauge. Ideal for non-destructive or creep testing. The cycle is repeated until the counter limit is reached.
