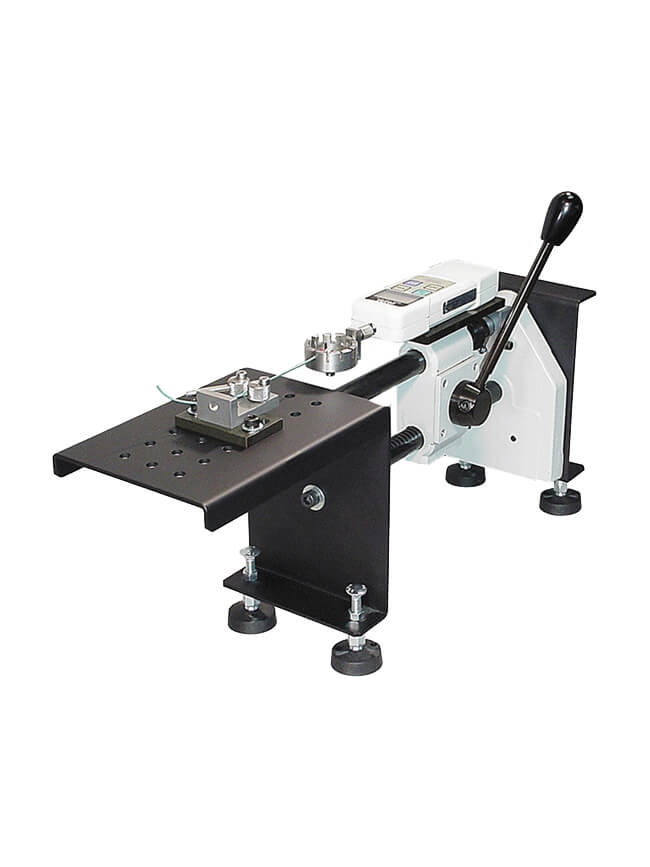

Imada WTT-HD Wire Terminal Tester with DS2-220, NLH-220, WG-3 and WG-300
The Imada WTT-HD Wire Terminal Tester with DS2-220, NLH-220, WG-3 and WG-300 is an easy to solution suitable for a vast majority of terminal testing applications. Accurately measure the pull or “pull-off” force on most soldered or solder-less wire terminals, crimped connectors and similar wire terminations.
Real time and peak mode (selectable) 220lb Capacity Includes NIST-Traceable calibration certificate lb, kg & Newton units are selectable 2 Year Warranty For wires up to 8mm OD
Measuring Range
0-100 Kg / 0-220 lbs / 0-1000N
Accuracy
±0.2% ±1 LSD
Resolution
0.01 Kg / 0.1 lbs / 0.1 N
Maximum Travel
2"
Overload Protection
200% of F.S., Display flashes beyond 105% of F.S.
Output
RS-232, Mitutoyo Digimatic and ±1 VDC analog output
Power
Internal NiCad batteries or AC adapter
Warranty
2 years
More Information
Product Specifications
Measuring Range
0-100 Kg / 0-220 lbs / 0-1000N
Accuracy
±0.2% ±1 LSD
Resolution
0.01 Kg / 0.1 lbs / 0.1 N
Maximum Travel
2"
Overload Protection
200% of F.S., Display flashes beyond 105% of F.S.
Output
RS-232, Mitutoyo Digimatic and ±1 VDC analog output
Power
Internal NiCad batteries or AC adapter
Warranty
2 years
Product Features
Real time and peak mode (selectable) 220lb Capacity Includes NIST-Traceable calibration certificate lb, kg & Newton units are selectable 2 Year Warranty For wires up to 8mm OD
