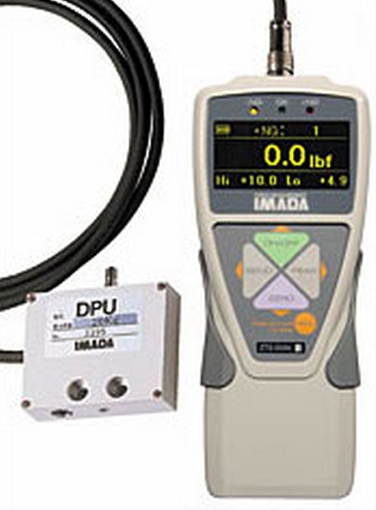

Imada ZTA-DPU-Series Digital Force Gauge with Remote Sensor
The Imada ZTA-DPU-Series Digital Force Gauge with Remote Sensor is designed to process up to 2,000 data per second.
- Electroluminescent display (ELD) is highly visible in dark locations
- External switch display hold and clear
- Processes and transmits 2,000 data/sec.
- USB (virtual COM port), RS-232C, Digimatic and Analog outputs
- Ergonomic design with non-slip grips, heavy duty metal construction
- Internal Ni-MH batteries or AC adapter
- Overload capacity 200% F.S.
- Real time and peak mode (selectable)
- Multi-langauge program menus: English, Spanish, French, Chinese, German, Italian, Korean, Japanese
- Overload alarm and output signal
- Color-coded LED indicators and output signal for Go/No Go testing
- lbf, kgf, and N units are selectable
- Display force and displacement data with FA test stand (ZTA Models only)
- Export gauge memory or save continuous data to USB flash drives (ZTA Models only)
| Accuracy |
± 0.2% F.S., ± 1 LSD |
| Selectable Units |
lbf(ozf), kgf(gf) or Newtons |
| Overload Capacity |
200% of F.S. (Overload indicator flashes beyond 110% of F.S.) |
| Power |
Rechargeable Ni-MH battery pack or AC adapter |
| Battery Indicator |
Indicates three charge states high, med and low |
| Memory |
Non-volative, recall up to 1,000 data |
| Setpoints |
Programmable high/low setpoints w/ color-coded LEDs & output signal |
| Outputs |
Outputs USB (virtual COM port), RS-232C, Digimatic and ± 2 VDC analog output |
| Operating Temperature |
32 to 100 °F (0 to 40 °C) |

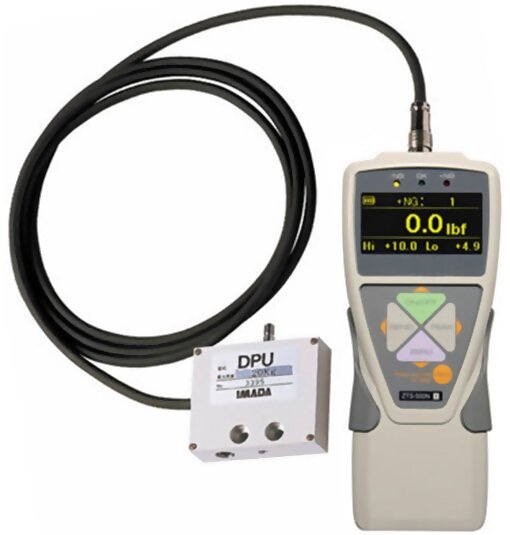

- Imada ZTA-DPU-Series Digital Force Gauge
- Remote sensor with 6' cable
- ZT Logger data acquisition software
- USBu2008cable
- AC adapter/charger
- Calibration cert traceable to NIST
- Carrying Case
|
 |
More Information
| Product Specifications |
| Accuracy |
± 0.2% F.S., ± 1 LSD |
| Selectable Units |
lbf(ozf), kgf(gf) or Newtons |
| Overload Capacity |
200% of F.S. (Overload indicator flashes beyond 110% of F.S.) |
| Power |
Rechargeable Ni-MH battery pack or AC adapter |
| Battery Indicator |
Indicates three charge states high, med and low |
| Memory |
Non-volative, recall up to 1,000 data |
| Setpoints |
Programmable high/low setpoints w/ color-coded LEDs & output signal |
| Outputs |
Outputs USB (virtual COM port), RS-232C, Digimatic and ± 2 VDC analog output |
| Operating Temperature |
32 to 100 °F (0 to 40 °C) |
|
| Product Features |
- Electroluminescent display (ELD) is highly visible in dark locations
- External switch display hold and clear
- Processes and transmits 2,000 data/sec.
- USB (virtual COM port), RS-232C, Digimatic and Analog outputs
- Ergonomic design with non-slip grips, heavy duty metal construction
- Internal Ni-MH batteries or AC adapter
- Overload capacity 200% F.S.
- Real time and peak mode (selectable)
- Multi-langauge program menus: English, Spanish, French, Chinese, German, Italian, Korean, Japanese
- Overload alarm and output signal
- Color-coded LED indicators and output signal for Go/No Go testing
- lbf, kgf, and N units are selectable
- Display force and displacement data with FA test stand (ZTA Models only)
- Export gauge memory or save continuous data to USB flash drives (ZTA Models only)
|
| Downloads |
comming soon |
