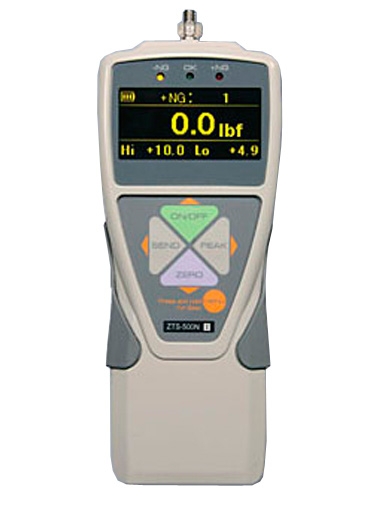

Imada ZTA-Series Digital Force Gauge
ZTA Digital Force Gauges feature a brand new intuitive user interface with easy-to-use menus. Select units, reverse The Imada ZTA-Series Digital Force Gauge is display, set high/low setpoints, and set all o The Imada ZTA-Series Digital Force Gauge isr functions using plain language menus. The Imada ZTA-Series Digital Force Gauge is ZTA Digital Force Gauge has an electro luminescent EL display. The Imada ZTA-Series Digital Force Gauge is vibrant display shows force value, unit, and peak, and can be configured with additional user-selectable data including memory data, +NG count, high/low setpoints, 1st and 2nd peaks, displacement value (using Imada test stand with FA?option), etc.
Electroluminescent display (ELD) is highly visible in dark locations USB (virtual COM port), RS-232C, Digimatic and Analog outputs Processes and transmits 2,000 data/sec Internal Ni-MH batteries or AC adapter Ergonomic design with non-slip grips, heavy duty metal construction Real time and peak mode (selectable) Overload capacity 200% F.S. Overload alarm and output signal Multi-langauge program menus: English, Spanish, French, Chinese, German, Italian, Korean, Japanese lbf, kgf, and N units are selectable Color-coded LED indicators and output signal for Go/No Go testing Export gauge memory or save continuous data to USB flash drives (ZTA Models only) Display force and displacement data with FA test stand (ZTA Models only) 2 Year Warranty External switch display hold and clear Includes NIST Traceable Calibration Certificate
Accuracy
± 0.2% F.S., ± 1 LSD
Selectable Units
lbf(ozf), kgf(gf) or Newtons
Overload Capacity
200% of F.S. (Overload indicator flashes beyond 110% of F.S.)
Power
Rechargeable Ni-MH battery pack or AC adapter
Battery Indicator
Indicates three charge states high, med and low
Memory
Non-volative, recall up to 1,000 data
Setpoints
Programmable high/low setpoints w/ color-coded LEDs & output signal
Outputs
Outputs USB (virtual COM port), RS-232C, Digimatic and ± 2 VDC analog output
Operating Temperature
32 to 100 °F (0 to 40 °C)
Warranty
2 Years
Imada ZTA-Series Digital Force Gauge Set of 8 attachments (small hook, large hook, y-hook, flat, cone, chisel, notched and extension) ZT Logger data acquisition software USBu2008cable AC adapter/charger Calibration cert traceable to NIST Carrying Case
More Information
Product Specifications
Accuracy
± 0.2% F.S., ± 1 LSD
Selectable Units
lbf(ozf), kgf(gf) or Newtons
Overload Capacity
200% of F.S. (Overload indicator flashes beyond 110% of F.S.)
Power
Rechargeable Ni-MH battery pack or AC adapter
Battery Indicator
Indicates three charge states high, med and low
Memory
Non-volative, recall up to 1,000 data
Setpoints
Programmable high/low setpoints w/ color-coded LEDs & output signal
Outputs
Outputs USB (virtual COM port), RS-232C, Digimatic and ± 2 VDC analog output
Operating Temperature
32 to 100 °F (0 to 40 °C)
Warranty
2 Years
Product Features
Electroluminescent display (ELD) is highly visible in dark locations USB (virtual COM port), RS-232C, Digimatic and Analog outputs Processes and transmits 2,000 data/sec Internal Ni-MH batteries or AC adapter Ergonomic design with non-slip grips, heavy duty metal construction Real time and peak mode (selectable) Overload capacity 200% F.S. Overload alarm and output signal Multi-langauge program menus: English, Spanish, French, Chinese, German, Italian, Korean, Japanese lbf, kgf, and N units are selectable Color-coded LED indicators and output signal for Go/No Go testing Export gauge memory or save continuous data to USB flash drives (ZTA Models only) Display force and displacement data with FA test stand (ZTA Models only) 2 Year Warranty External switch display hold and clear Includes NIST Traceable Calibration Certificate
