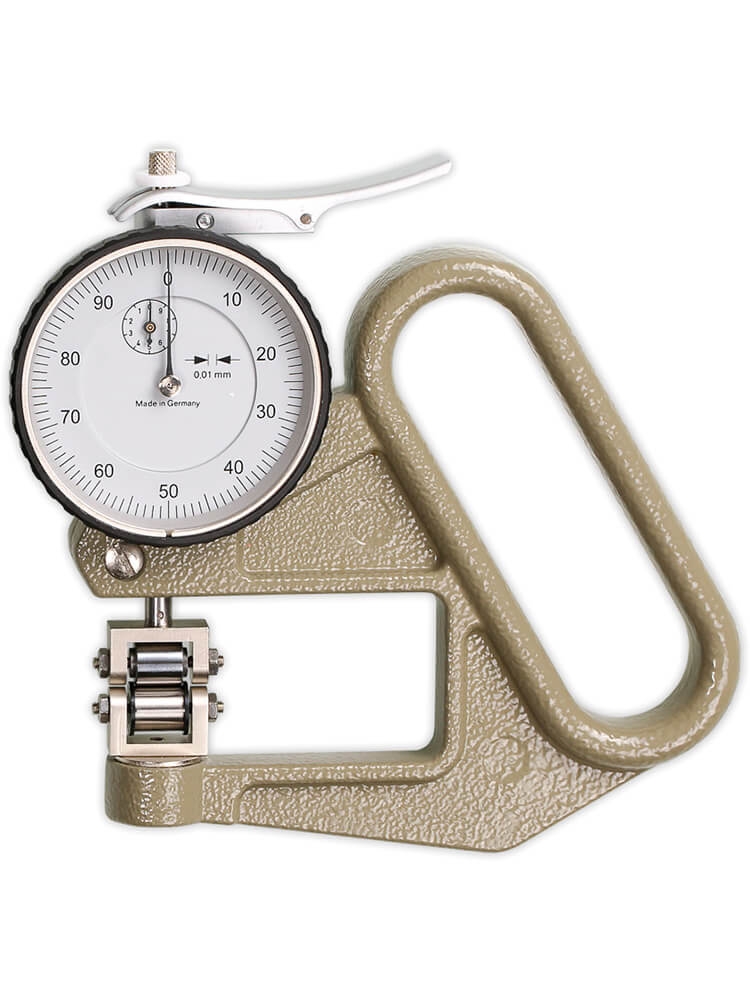

J50R Series Running Diameter & Dial Thickness Gauges
The J50R Series Running Diameter & Dial Thickness Gauges is a precision instrument that features ball bearing mounted cylindrical rollers, in lieu of flat anvil surfaces, which makes this dial micrometers ideal for measuring the diameter or thickness of slowly moving wire, filaments, foil, ribbon, narrow fabrics, etc. – without stopping the manufacturing process.
Digital Thickness Gauge for Running Lines Precision steel rollers for wire speeds up to 500 ft/min Lightweight and compact Available with or without roller flanges Inch or mm versions Pocket-Sized Traceable certificate optionally available Easy to read digital display
Resolution
0.001 inch / 0.01 mm
Jaw Depth
2" (50 mm)
Measuring Range
0 - 10 mm / 0 - 0.4 inch
Spring force
3.6 ozf (1 Newton)
Scale diameter
2.25 inches (50 mm)
Roller width
0.34 inches (8.70mm)
Maximum line speed
164 yd/min (150 m/min)
J50R Series Running Diameter & Dial Thickness Gauges Opening by lifting device (lever) - self closing
More Information
Product Specifications
Resolution
0.001 inch / 0.01 mm
Jaw Depth
2" (50 mm)
Measuring Range
0 - 10 mm / 0 - 0.4 inch
Spring force
3.6 ozf (1 Newton)
Scale diameter
2.25 inches (50 mm)
Roller width
0.34 inches (8.70mm)
Maximum line speed
164 yd/min (150 m/min)
Product Features
Digital Thickness Gauge for Running Lines Precision steel rollers for wire speeds up to 500 ft/min Lightweight and compact Available with or without roller flanges Inch or mm versions Pocket-Sized Traceable certificate optionally available Easy to read digital display
