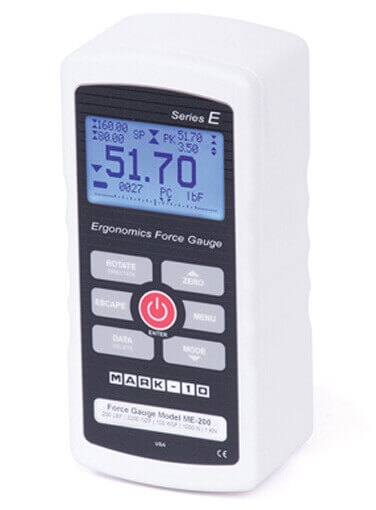

The Mark-10 EKE-500-1 Ergonomics Force Gauges Series E Advanced Kit, 500 lbF / 2,500 N Capacity is a precision instrument that makes job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. The Mark-10 Series E presents the ergonomist and other professionals with a simple and economical testing solution.
High / low limit indicators, for pass / fail and minimum force testing
Averaging mode calculates average force over a period of time
5,000-point data memory - data points may be saved individually or logged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESURTM Lite data collection software.
AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
Battery life
Backlight on
Measurement units
lbF, ozF, gF, kgF, N, kN (depending on model, see below)
USB output
Configurable up to 115,200 baud
Safe overload
200% of full scale (display shows OVER at 110% and above)
Weight
1.7 lb [0.8 kg]
Included items
Carrying case, universal voltage AC adapter, battery, USB cable, resource CD (USB driver, MESUR Lite software, MESUR gauge 90-day trial, and user's guide), NIST-traceable certificate of calibration with data
Warranty
3 years (see individual statement for further details)
AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
Battery life
Backlight on
Measurement units
lbF, ozF, gF, kgF, N, kN (depending on model, see below)
USB output
Configurable up to 115,200 baud
Safe overload
200% of full scale (display shows OVER at 110% and above)
Weight
1.7 lb [0.8 kg]
Included items
Carrying case, universal voltage AC adapter, battery, USB cable, resource CD (USB driver, MESUR Lite software, MESUR gauge 90-day trial, and user's guide), NIST-traceable certificate of calibration with data
Warranty
3 years (see individual statement for further details)
Product Features
Measure real time and peak push and pull forces
Click-Lock accessory mounting technology
USB data output
High / low limit indicators, for pass / fail and minimum force testing
Averaging mode calculates average force over a period of time
5,000-point data memory - data points may be saved individually or logged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESURTM Lite data collection software.
