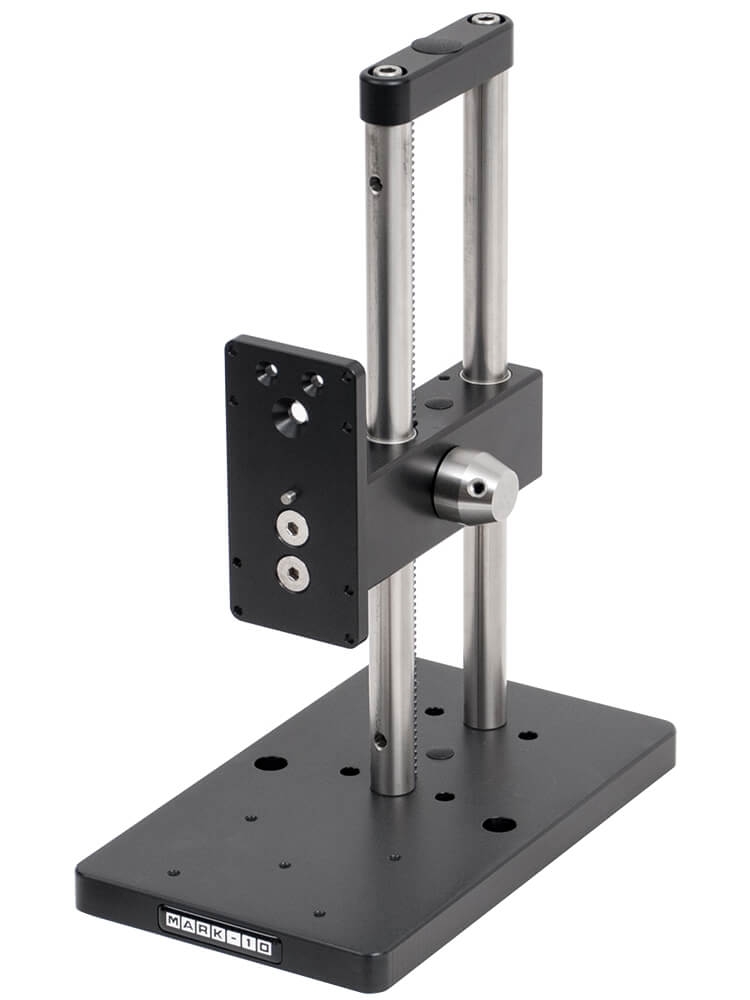

Mark-10 ES10 Mechanical / Manual Lever Operated Test Stand, 100 Lb Capacity
The Mark-10 ES10 Mechanical / Manual Lever Operated Test Stand, 100 Lb Capacity is a hand-lever operated manual test stand with a maximum capacity of 100lbs. The ES10 Mechanical Test Stand can be used with our HP Series Durometers.
Force Gauge & Dial Indicator Not Included Mounting holes for bench mounting Loading lever can be placed in 3 positions for ease of operation Large baseplate with 5 #10-32 UNF holes for fixture mounting Optional 1" [25.4mm] dial indicator travel kit Can be used with our HP Series Durometers 9" Maximum Travel
Capacity
100 lb (45 kg)
Stroke
9" (229mm)
Weight
10 lb (4.5kg)
Compatible Gauges
BG and MG
Warranty
3 years

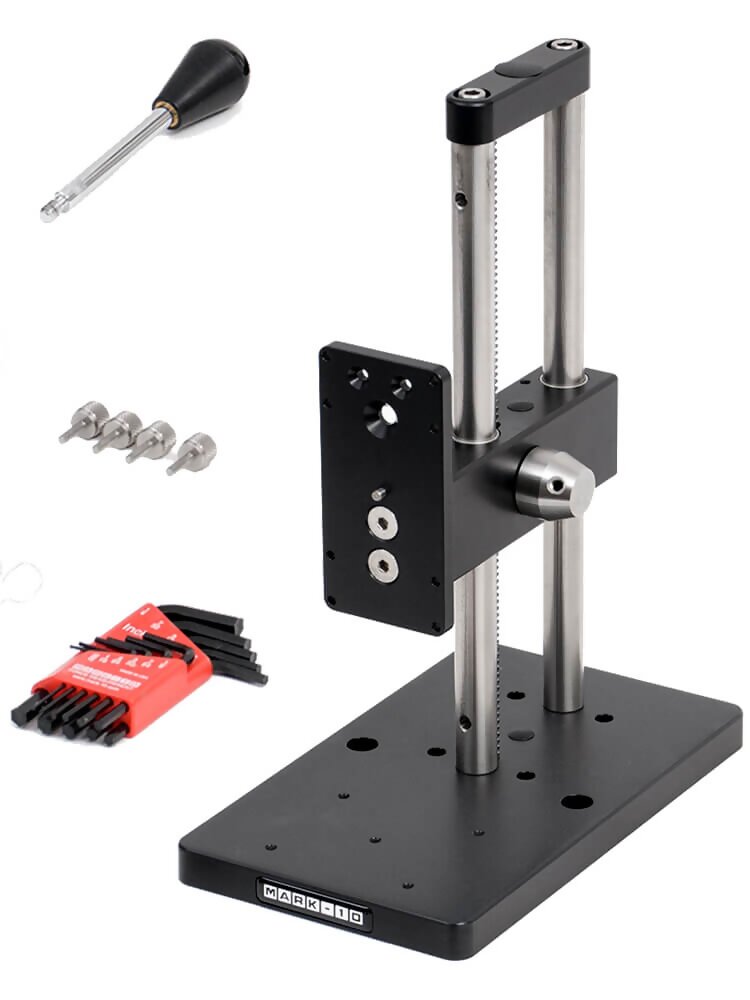

Kit Contents
Mark-10 ES10 Mechanical / Manual Lever Operated Test Stand Allen wrench set Lever Thumb screw for force gauge
More Information
Product Specifications
Capacity
100 lb (45 kg)
Stroke
9" (229mm)
Weight
10 lb (4.5kg)
Compatible Gauges
BG and MG
Warranty
3 years
Product Features
Force Gauge & Dial Indicator Not Included Mounting holes for bench mounting Loading lever can be placed in 3 positions for ease of operation Large baseplate with 5 #10-32 UNF holes for fixture mounting Optional 1" [25.4mm] dial indicator travel kit Can be used with our HP Series Durometers 9" Maximum Travel
Downloads
