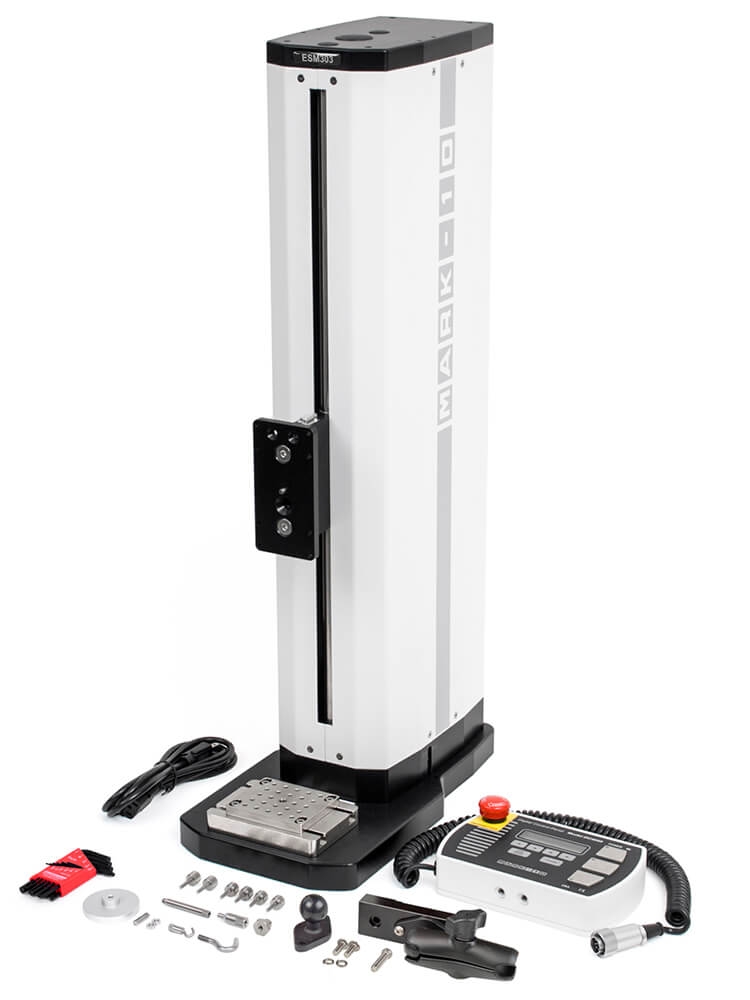

The Mark-10 ESM303 Advanced Motorized Test Stand, 300 lb Capacity is designed for tension and compression measurement up to 300 lb / 1500 N. Its rugged design is suitable for laboratory and production environments. With generous travel, clearance, and depth, a wide range of tests can be performed, including destructive testing, cycling, limit testing to load or distance, load-holding, elongation testing, tensile testing, compression testing, and more. A simple menu allows the user to program test speed, force and distance limits, cycling, preload, and many other functions, all protected by a password. Save up to 50 profiles to accommodate a range of test methods. If the Mark-10 ESM303’s clearance is insufficient for the application, its modular mechanical design allows for single and double-column extensions. The Mark-10 ESM303 High Performance Motorized Test Stand offers and range of optional functions to extended its capability such as travel measurement, cycling, loadholding, etc., may be purchased either upfront or enabled in the field through an activation code. This a-la-carte platform allows for custom configuration as appropriate for the application and budget.
