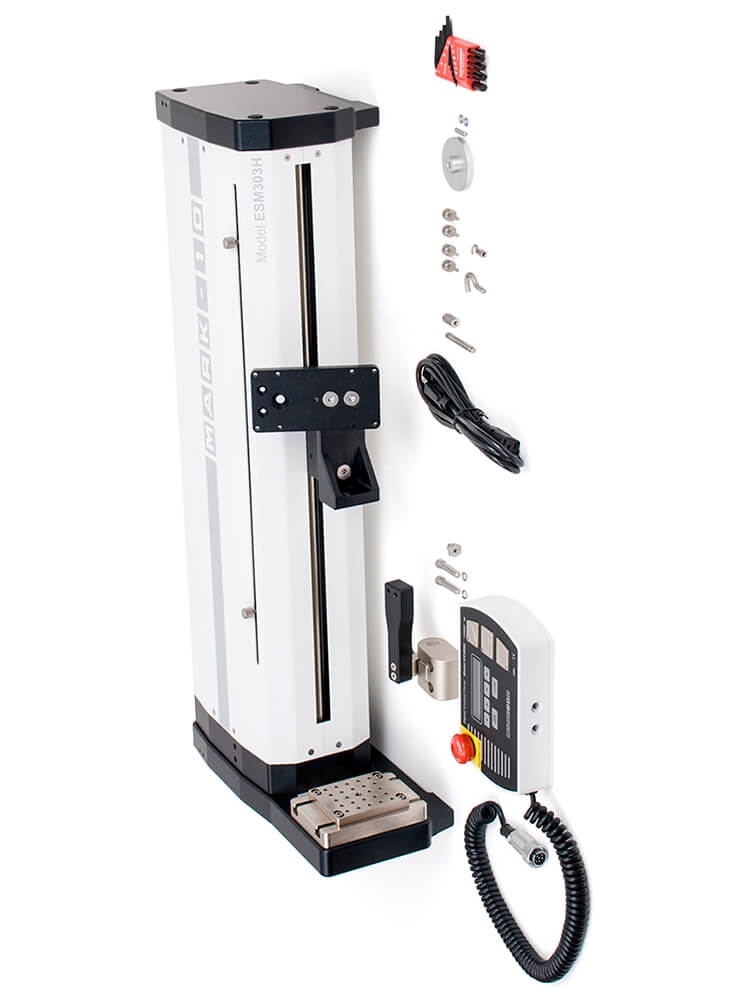

The Mark-10 ESM303H Advanced Motorized Horizontal Test Stand, 300 lb Capacity is a highly configurable horizontal force tester for tension and compression measurement applications up to 300 lbF, with a rugged design suitable for laboratory and production environments. Sample setup and fine positioning are a breeze with available FollowME force-based positioning - using your hand as your guide, push and pull on the load cell to move the cross head at a variable rate of speed. With generous travel, clearance, and depth dimensions, a wide range of tests can be performed, including break testing, cycling, limit testing to a load or distance, load holding, elongation testing, tensile testing, compression testing, and more. Satisfy various test methods through an easy-to-use menu, allowing the configuration of test speed, force and distance limits, cycling, preload, and many other functions, all protected by a password. Save up to 50 profiles to accommodate a range of test methods. When the Mark-10 ESM303H’s clearance is insufficient for the application, its modular mechanical design allows for frame extensions. Modularity extends to the controller functions as well. Individual functions, such as travel measurement, cycling, load holding, etc., may be purchased either upfront or enabled in the field through an activation code. This a-la-carte platform allows for custom configuration as appropriate for the application and budget. Collect force and travel data, plot and analyze the results, and control test stand motion via PC-based MESUR gauge Plus software. Or, fully control the stand by a PC through a custom-written program in any language supporting ASCII communications.
300 lbF (1.5 kN) @ up to 24 in/min (610 mm/min) 200 lbF (1 kN) @ >24 in/min (610 mm/min)
Maximum travel distance
18.0 in (457 mm)
Speed range
Standard
Speed setting accuracy
±0.2% of setting
Speed variation with load
±0% (stepper motor driven)
Travel accuracy*
±0.002 in. per 10 in. (±0.05 mm per 250 mm)
Travel resolution
0.001 in / 0.02 mm
Limit switch repeatability
0.001 in (0.03 mm)
Power
Universal input 80-240 VAC, 50/60 Hz
Weight
62.5 lb (28.4 kg)
Warranty
3 years (see individual statement for further details)
*
Because load cell deflection and system deflection are present and not automatically compensated for, this equipment is recommended for applications requiring at least 0.2 in [5 mm] of travel distance
300 lbF (1.5 kN) @ up to 24 in/min (610 mm/min) 200 lbF (1 kN) @ >24 in/min (610 mm/min)
Maximum travel distance
18.0 in (457 mm)
Speed range
Standard
Speed setting accuracy
±0.2% of setting
Speed variation with load
±0% (stepper motor driven)
Travel accuracy*
±0.002 in. per 10 in. (±0.05 mm per 250 mm)
Travel resolution
0.001 in / 0.02 mm
Limit switch repeatability
0.001 in (0.03 mm)
Power
Universal input 80-240 VAC, 50/60 Hz
Weight
62.5 lb (28.4 kg)
Warranty
3 years (see individual statement for further details)
*
Because load cell deflection and system deflection are present and not automatically compensated for, this equipment is recommended for applications requiring at least 0.2 in [5 mm] of travel distance
Product Features
Selectable speed setting
Right and left travel limit switches
Adjustable, removable control panel may be mounted to the left or right end of the frame
Password protection of test parameters
Stepper motor-driven, producing smooth and quiet operation with no speed variation under load
USB output of force or force vs. travel
Compact footprint, suitable for crowded work benches
Ergonomic design, with smart, clean cable management
Integrated electronics assembly, easily removed and transported for service
