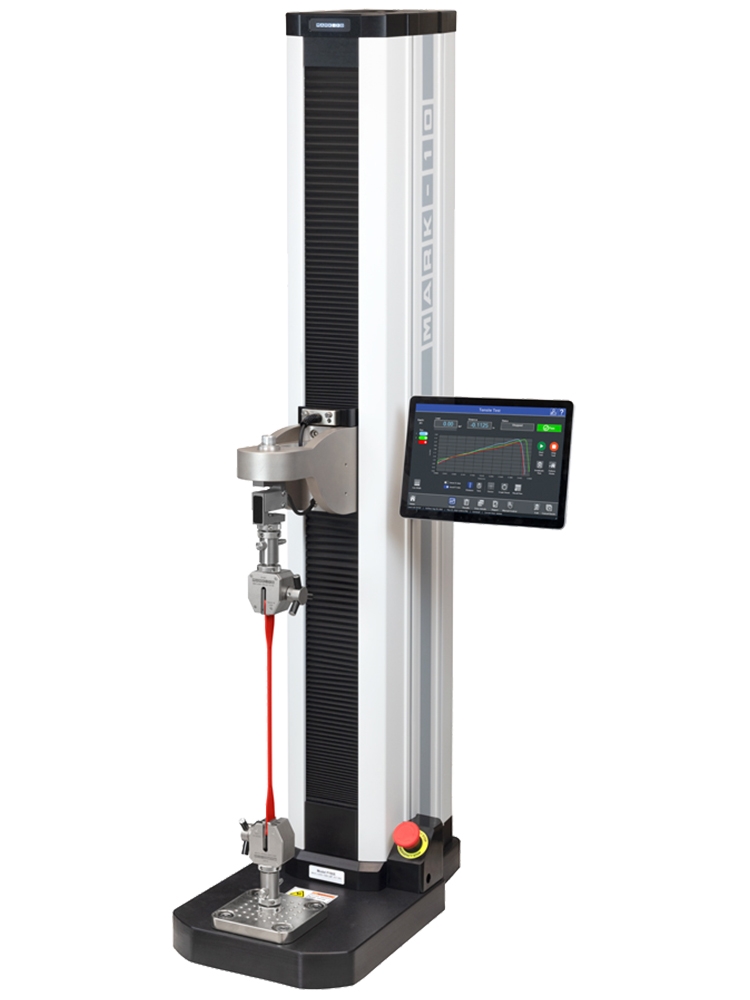

This family of force testers is designed for tension and compression force testing applications, with force capacities up to 1,500 lbF (6.7 kN). Select from a broad range of force sensor capacities and an expansive array of grips and fixtures.Set up tests, record data, and analyze data via IntelliMESUR® software. From basic tests to multi-step sequencing, IntelliMESUR® is fully integrated with Series F systems. Select from a pre-configured tablet control panel or standalone software for your own Windows device.
Exceptionally rigid frames feature custom extrusion designs, engineered for stiffness. Factory compensation of test frames and force sensors ensure position accuracy of 0.002 in / 0.05 mm under any load, at any position.
Stepper motors and controllers drive a ballscrew and linear guideway for smooth, quiet operation, with virtually no speed variation under load.
External limit switches
Solid-state upper and lower limit switches may be used as test limits or as test exceptions. Dual-graduated rulers aid in switch placement.
Easy-to-service electronics
Most electronics are housed in an integrated module, easily replaced without special tools or processes.
±0.002 in [0.05 mm], factory-compensated at up to full load
Distance resolution
0.0005 in [0.01 mm]
Limit switch repeatability
±0.001 in [0.03 mm]
Fuse type
4A, 3AG, SLO BLO
Warranty
3 years [see individual statement for further details]
Conformance
CE
1
Load capacity is reduced at higher speeds, as follows
*
F755 / F755S
*
F1505 / F1505S
2
May be extended via single- or double-column extensions
Product Features
Rigid and precise by design
Exceptionally rigid frames feature custom extrusion designs, engineered for stiffness. Factory compensation of test frames and force sensors ensure position accuracy of 0.002 in / 0.05 mm under any load, at any position.
Stepper motors and controllers drive a ballscrew and linear guideway for smooth, quiet operation, with virtually no speed variation under load.
External limit switches
Solid-state upper and lower limit switches may be used as test limits or as test exceptions. Dual-graduated rulers aid in switch placement.
Easy-to-service electronics
Most electronics are housed in an integrated module, easily replaced without special tools or processes.
