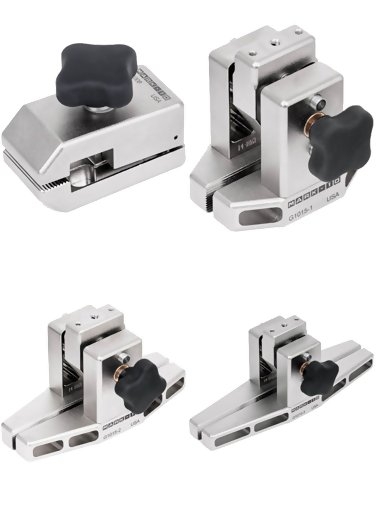

Mark-10 G1015-2 Film and Paper Grip 5", Capacity 100 lb
The Mark-10 G1015-2 Film and Paper Grip 5", Capacity 100 lb is designed for gripping film, paper, labels, packaging, and other thin materials for tensile and peel testing. Adjustable serrated interlocking jaws effectively grip the samples for up to 100 lb of force. The grips are available in four sizes: 1", 3", 5", and 7". Use them with a force gauge and a test stand to create a complete testing system.
Tensile testing of film, paper, and other thin materials
G1008
Film & paper grip Capacity- 100 lb Size- 1.18"W x 1.25"D x 2.6"L Weight- 0.31 lb Thread- #10-32 UNF Sample size- 1.25" wide
G1015-1
Film & paper grip Capacity- 100 lb Size- 1.85"D x 3"H x 3"W Weight- 0.57 lb Thread- #10-32 UNF Sample size- 3" wide
G1015-2
Film & paper grip Capacity- 100 lb Size- 1.85"D x 3"H x 5"W Weight- 0.67 lb Thread- #10-32 UNF Sample size- 5" wide
G1015-3
Film & paper grip Capacity- 100 lb Size- 1.85"D x 3"H x 7"W Weight- 0.77 lb Thread- #10-32 UNF Sample size- 7" wide
More Information
Product Specifications
G1008
Film & paper grip Capacity- 100 lb Size- 1.18"W x 1.25"D x 2.6"L Weight- 0.31 lb Thread- #10-32 UNF Sample size- 1.25" wide
G1015-1
Film & paper grip Capacity- 100 lb Size- 1.85"D x 3"H x 3"W Weight- 0.57 lb Thread- #10-32 UNF Sample size- 3" wide
G1015-2
Film & paper grip Capacity- 100 lb Size- 1.85"D x 3"H x 5"W Weight- 0.67 lb Thread- #10-32 UNF Sample size- 5" wide
G1015-3
Film & paper grip Capacity- 100 lb Size- 1.85"D x 3"H x 7"W Weight- 0.77 lb Thread- #10-32 UNF Sample size- 7" wide
Product Features
Tensile testing of film, paper, and other thin materials
