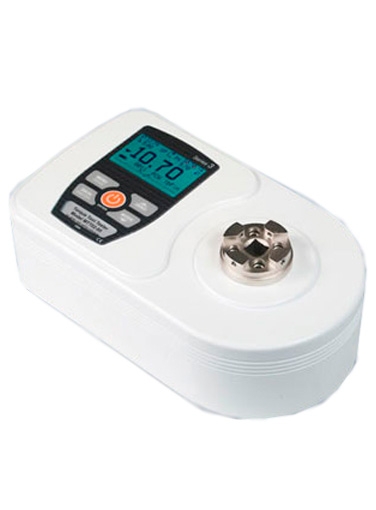

The Mark-10 Torque Tool Tester Series TT02 is a simple and accurate solution for testing manual and electric torque screwdrivers, wrenches, and other tools. The Mark-10 MTT02-50 Torque Tool Tester Series TT02, 50 lbFin Capacity is provided to prevent unauthorized changes to settings and calibration. Series TT02 testers include MESURTM Lite data acquisition software. MESURTM Lite tabulates continuous or single point data. Data stored in the TT02’s memory can also be downloaded in bulk. One-click export to Excel allows for further data manipulation.
AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery Life
Backlight on; up to 7 hours of continuous use Backlight off; up to 24 hours of continuous use
Measurement units
ozFin, lbFin, lbFft, Nm, Ncm
Outputs
USB / RS-232; Configurable up to 115,200 baud. Mitutoyo; Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog;±1 VCD, ±0.25% of full scale at capacity. General purpose; Three open drain outputs, one input. Set points; Three open drain lines.
AC or rechargeable battery. Multi-step low battery indicator is displayed, tester shuts off automatically when power is too low.
Battery Life
Backlight on; up to 7 hours of continuous use Backlight off; up to 24 hours of continuous use
Measurement units
ozFin, lbFin, lbFft, Nm, Ncm
Outputs
USB / RS-232; Configurable up to 115,200 baud. Mitutoyo; Serial BCD suitable for all Mitutoyo SPC-compatible devices. Analog;±1 VCD, ±0.25% of full scale at capacity. General purpose; Three open drain outputs, one input. Set points; Three open drain lines.
