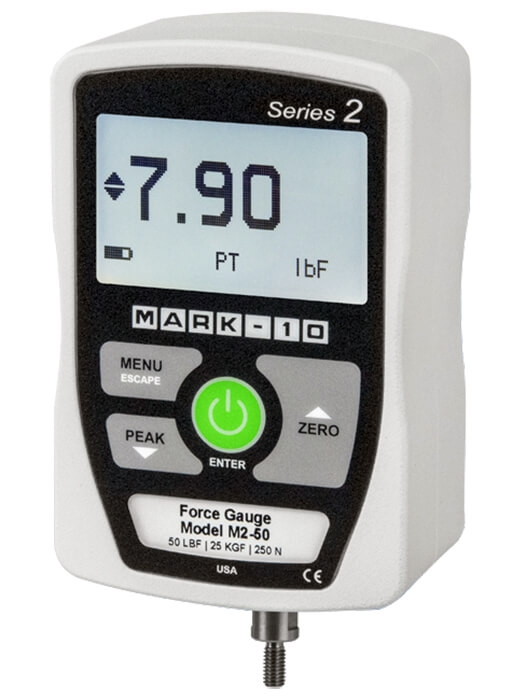

Mark-10 Series 2 Economical Digital Force Gauge
The Mark-10 Series 2 Economical Digital Force Gauge is designed for basic tension and compression force testing applications up to 100 lbF (500 N). Peak tension and compression readings are reliably captured via the gauges' ±0.5% accuracy and 500 Hz sampling rate. The Mark-10 Series 2 backlit graphic LCD displays the current, peak tension, or peak compression reading. The gauges are overload protected to 150% of capacity. An ergonomic, reversible aluminum housing allows for hand held use or fixture mounting, rugged enough for applications in both production and laboratory environments.
Calculates peak tension and compression values 3 selectable units of measurement Ultra-compact, ergonomic housing Configurable default measurement unit and mode 500 Hz sampling rate Large, backlit graphic display with auto-dimming Powered by 9V battery or available AC adapter Reversible housing for alternate load cell orientation
Accuracy
±0.5% of full scale
Sampling Rate
500 Hz
Power
AC or 9V non-rechargeable battery, with multi-step low battery indicator
Battery Life
Backlight on; up to 24 hours of continuous use Backlight off; up to 92 hours of continuous use
Measurement Units
lbF, kgF, N
Safe Overload
150% of full scale (display shows "OVER" at 110% and above)
Included Accessories
V battery, quick-start guide, resource CD, certificate of conformance
Environmental requirements
40 - 100°F, max. 96% humidity, non-condensating
Warrany
3 years

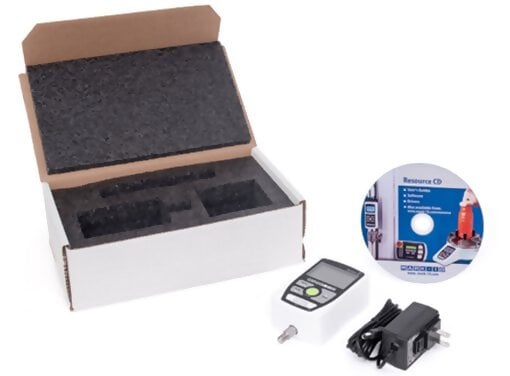

Mark-10 Series 2 Economical Digital Force Gauge AC adapter Battery Resource CD Certificate of conformance
More Information
Product Specifications
Accuracy
±0.5% of full scale
Sampling Rate
500 Hz
Power
AC or 9V non-rechargeable battery, with multi-step low battery indicator
Battery Life
Backlight on; up to 24 hours of continuous use Backlight off; up to 92 hours of continuous use
Measurement Units
lbF, kgF, N
Safe Overload
150% of full scale (display shows "OVER" at 110% and above)
Included Accessories
V battery, quick-start guide, resource CD, certificate of conformance
Environmental requirements
40 - 100°F, max. 96% humidity, non-condensating
Warrany
3 years
Product Features
Calculates peak tension and compression values 3 selectable units of measurement Ultra-compact, ergonomic housing Configurable default measurement unit and mode 500 Hz sampling rate Large, backlit graphic display with auto-dimming Powered by 9V battery or available AC adapter Reversible housing for alternate load cell orientation
