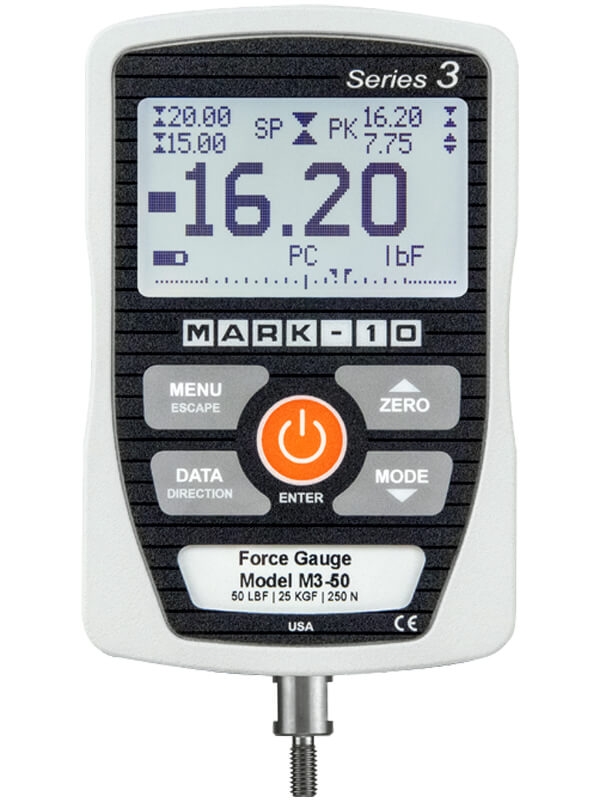

The Mark-10 Series 3 Digital Force Gauge is designed for measuring tension and compression (push & pull) force testing in numerous applications. The gauges feature a sampling rate of 2,000 Hz, producing accurate results under a wide range of test conditions. The Mark-1- Series 3 backlit graphic LCD displays large characters, and a menu is available to access the gauges’ features and configurable parameters. USB output (non-streaming) is provided for data collection purposes. Set point indicators are provided for pass-fail testing. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force. An ergonomic, reversible aluminum housing allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 3 digital force gauges are directly compatible with a wide range of test stands, grips, and software. The gauges include MESUR Lite data acquisition software. MESUR Lite tabulates continuous or single point data. One-click export to Excel allows for further data manipulation.
AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
Battery Life
Backlight on - up to 7 hours of continuous use | Backlight off - up to 24 hours of continuous use
Measurement units
lbF, gF, kgF, N (depending on model)
USB Output
Single Data Point sent By pressing DATA key
Configurable Settings
Digital filters, USB output settings, backlight, automatic shutoff, key tones, audio alarms, default settings, calibration
Safe overload
150% of full scale (display shows “OVER” at 110% and above)
Weight
0.7 lb [0.33 kg]
Warranty
3 years
Kit Content

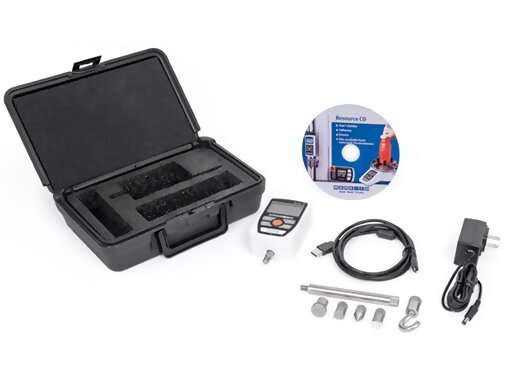

Supplied as a complete kit including the force gauge, carrying case, chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESUR Lite software, MESURgauge DEMO software, and user's guide), NIST-traceable certificate of calibration (data is available for an additional charge)
