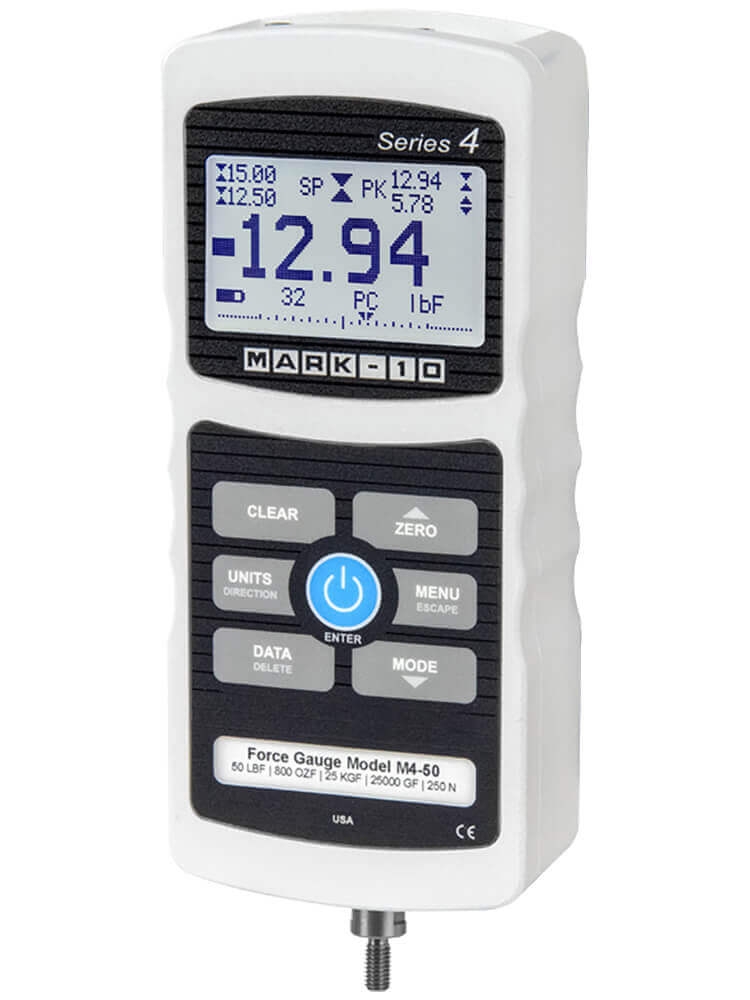

Mark-10 Series 4 Advanced Digital Force Gauge

The Mark-10 Series 4 Advanced Digital Force Gauge is designed for tension and compression force testing in numerous applications across virtually every industry. The gauges feature a sampling rate of 3,000 Hz, producing accurate results under a wide range of test conditions. Accuracy is ±0.2% of full scale ±1 digit, and resolution is 1/2000. A large, backlit graphics LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges’ many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. On-board data memory for up to 50 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force. An ergonomic, reversible aluminum design allows for hand held use or test stand mounting for more sophisticated testing requirements. Series 4 digital force gauges are directly compatible with Mark-10 test stands, grips, and software. Series 4 gauges include MESUR Lite data acquisition software. MESUR Lite tabulates continuous or single point data from Series 5 and 4 gauges. Data saved in the gauge’s memory can also be downloaded in bulk. One-click export to Excel easily allows for further data manipulation.
