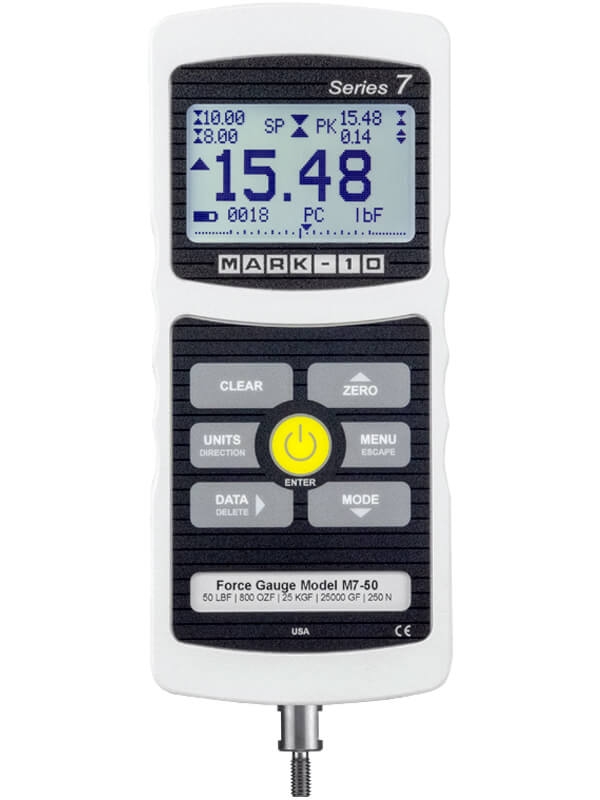

The Mark-10 Series 7 Professional Digital Force Gauge is designed with a number of sophisticated features for the most demanding tension and compression measurement applications, up to 500 lbF (2500 N). The gauges feature ±0.1% accuracy and a blazingly fast, industry-leading sampling rate of 14,000 Hz, producing reliable results for extremely quick-action tests. Mark-10 Series 7 gauges include all the functions of Series 5 gauges, with several additional features, including high speed continuous data capture and storage, with memory for up to 5,000 readings, at an acquisition rate of up to 14,000 Hz. The gauges also feature programmable footswitch sequencing, break detection, and 1st / 2nd peak detection. The Mark-10 Series 7 includes a coefficient of friction unit of measurement and user-defined unit of measurement. For productivity enhancement, the gauges also feature automatic data output, data storage, and zeroing functions upon the completion of break detection, averaging, external trigger, and 1st / 2nd peak detection. Series 7 force gauges are directly compatible with our ESM301 test stand, to permit functions such as break testing, tensile testing, compression testing, dynamic load holding, PC control capability, and many other applications.
AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
Battery Life
Backlight on; up to 7 hours of continuous use Backlight off - up to 24 hours of continuous use
Measurement Units
lbF, ozF, gF, kgF, N, kN, mN (depending on model)
Outputs
USB / RS-232 - Fully configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic); Serial BCD suitable for all Mitutoyo SPC-compatibile devices. Analog; ±1 VCD, ±0.25% of full scale at capacity. General Purpose; Three open drain outputs, one input. Set Points; Three open drain lines.

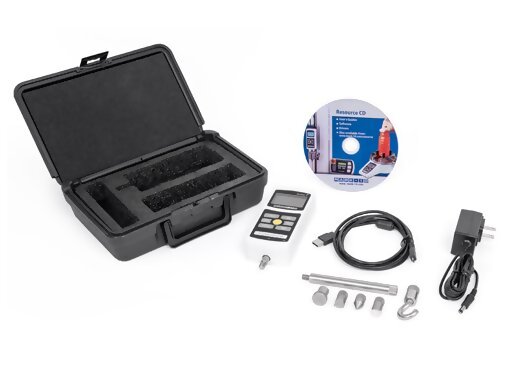

Carrying case with chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user's guide), and NIST-traceable certificate of calibration with data.
AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low
Battery Life
Backlight on; up to 7 hours of continuous use Backlight off - up to 24 hours of continuous use
Measurement Units
lbF, ozF, gF, kgF, N, kN, mN (depending on model)
Outputs
USB / RS-232 - Fully configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control. Mitutoyo (Digimatic); Serial BCD suitable for all Mitutoyo SPC-compatibile devices. Analog; ±1 VCD, ±0.25% of full scale at capacity. General Purpose; Three open drain outputs, one input. Set Points; Three open drain lines.
Carrying case with chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter, battery, quick-start guide, USB cable, resource CD (USB driver, MESURTM Lite software, MESURTMgauge DEMO software, and user's guide), and NIST-traceable certificate of calibration with data.
Environmental requirements
40 - 100°F, max. 96% humidity, non-condensating
Warrany
3 years
Product Features
High-speed 14,000 Hz sampling rate
Continous data capture of up to 5,000 data points, at up to 14,000 Hz, downloadable to a PC
Individual data point memory for up to 5,000 data points, downloadable to a PC
5 units of measurement, plus Coefficient of Friction, and user-defined unit with configurable name
Sample break detection with auto functions, including stopping movement on theESM301(L) test stand
Programmable set points with pass/fail audible and visual indicators
Automatic output / data storage / zeroing upon various event completions
Averaging mode - calculates average readings over time
Programmable footswitch command string
External trigger mode - for switch contact testing or remotely stopping display update
USB, RS-232, Mitutoyo, and analog outputs
Password protection, configurable for individual keys and calibration
