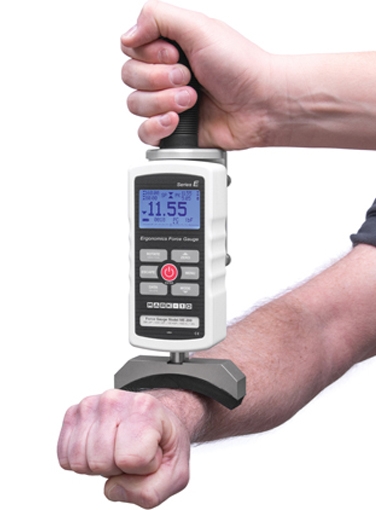

The Mark-10 Series E Ergonomics Force Gauge ME is a precision instrument that makes job task analysis and ergonomics analysis simple and accurate, ideal for workplace design, strength assessment, and ergonomic studies. Series E presents the ergonomist and other professionals with a simple and economical testing solution. 100 lbF, 200 lbF and 500 lbF (500, 2,500, and 5,000 N) capacity force gauges are available, along with a wide range of attachments for various applications. Select a pre-configured kit, including a gauge, accessories, and carrying case, or select each item individually to suit your needs. Attachments click and lock into place via innovative Click-Lock technology, a rugged anti-rotation locking mechanism. The attachments may be clicked into 90 degrees or 180 degrees orientations. No fastening is required, as with conventional force gauges, thereby reducing the risk of damage to the instrument.
High / low limit indicators, for pass / fail and minimum force testing
Averaging mode calculates average force over a period of time
5,000-point data memory - data points may be saved individually or logged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESUR Lite data collection software.
AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life
Backlight on
Measurement units
lbF, ozF, gF, kgF, N, kN (depending on model)
USB Output
Configurable up to 115,200 baud
Safe overload
200% of full scale (display shows OVER at 110% and above)
Weight
1.7 lb (0.8 kg)
Included items
Carrying case, universal voltage AC adapter, battery, USB cable, resource CD (USB driver, MESUR Lite software, MESUR gauge and MESUR gauge Plus 90-day trial, and user's guide), NIST-traceable certificate of calibration with data
AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low.
Battery Life
Backlight on
Measurement units
lbF, ozF, gF, kgF, N, kN (depending on model)
USB Output
Configurable up to 115,200 baud
Safe overload
200% of full scale (display shows OVER at 110% and above)
Weight
1.7 lb (0.8 kg)
Included items
Carrying case, universal voltage AC adapter, battery, USB cable, resource CD (USB driver, MESUR Lite software, MESUR gauge and MESUR gauge Plus 90-day trial, and user's guide), NIST-traceable certificate of calibration with data
Warranty
3 years
Product Features
Measure real time and peak push and pull forces
Click-Lock accessory mounting technology
USB data output
High / low limit indicators, for pass / fail and minimum force testing
Averaging mode calculates average force over a period of time
5,000-point data memory - data points may be saved individually or logged continuously at up to 7,000 Hz. Data points may be bulk downloaded to included MESUR Lite data collection software.
