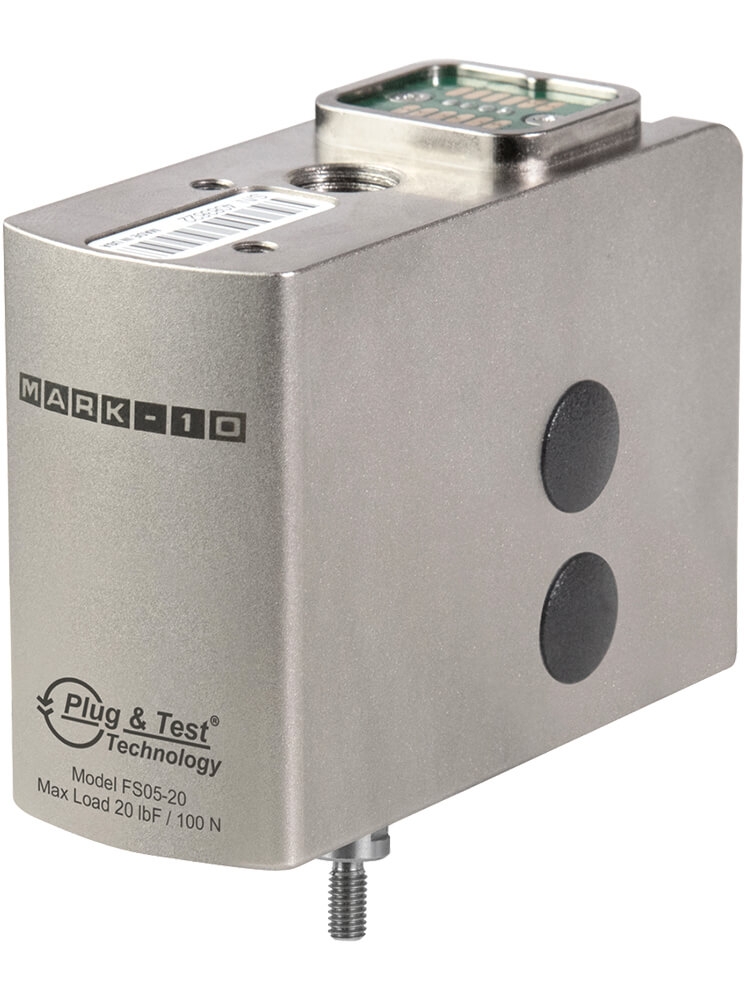

Mark-10 Series FS05 Tension and Compression Force Sensors
The Mark-10 Series FS05 Tension and Compression Force Sensors is mount directly to the crosshead of models F105, F305, F505, and F505H test frames, for a clean, integrated look. With Plug & Test technology, all configuration and calibration data is saved within the sensor, allowing it to be calibrated on the test frame or off-site with a Mark-10 indicator (optional adapter: AC1083 required ). Ranges available from 0.12 to 500 lbF [0.5 N to 2.5 kN].
NIST-traceable certificate of calibration with data is included Mount directly to crosshead of models F105, F305, F505, and F505H without any connection cables Member of the Plug & Test family of interchangeable sensors and indicators (adapter required) Measure tension and compression force Warranty: 3 years
Accuracy
± 0.1% of full scale + indicator or test frame
Safe Overload
150% of full scale
Weight
From 1.9 to 3 lb (0.9 to 1.4 kg)
Data acquisition rate
1,000 Hz
Speed accuracy
±0.2% of setting, virtually no variation with load
Distance accuracy
±0.002 in [0.05 mm], factory-compensated at up to full load
Distance resolution
0.0005 in / 0.01 mm
Limit switch repeatability
±0.001 in / 0.03 mm
Power
Universal input 100-240 VAC, 50/60 Hz, 300W
Fuse type
1.2 A, 250V, 3AG, SLO BLO
Temperature range
40 – 95°F / 5 – 35°C
Humidity range
up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing
Conformance
CE
More Information
Product Specifications
Accuracy
± 0.1% of full scale + indicator or test frame
Safe Overload
150% of full scale
Weight
From 1.9 to 3 lb (0.9 to 1.4 kg)
Data acquisition rate
1,000 Hz
Speed accuracy
±0.2% of setting, virtually no variation with load
Distance accuracy
±0.002 in [0.05 mm], factory-compensated at up to full load
Distance resolution
0.0005 in / 0.01 mm
Limit switch repeatability
±0.001 in / 0.03 mm
Power
Universal input 100-240 VAC, 50/60 Hz, 300W
Fuse type
1.2 A, 250V, 3AG, SLO BLO
Temperature range
40 – 95°F / 5 – 35°C
Humidity range
up to 80% relative humidity at 31°C, decreasing linearly to 50% relative humidity at 40°C, non-condensing
Conformance
CE
Product Features
NIST-traceable certificate of calibration with data is included Mount directly to crosshead of models F105, F305, F505, and F505H without any connection cables Member of the Plug & Test family of interchangeable sensors and indicators (adapter required) Measure tension and compression force Warranty: 3 years
