Mark-10 TSA750 Lever Operated Test Stand Vertical, 750 Lb Capacity

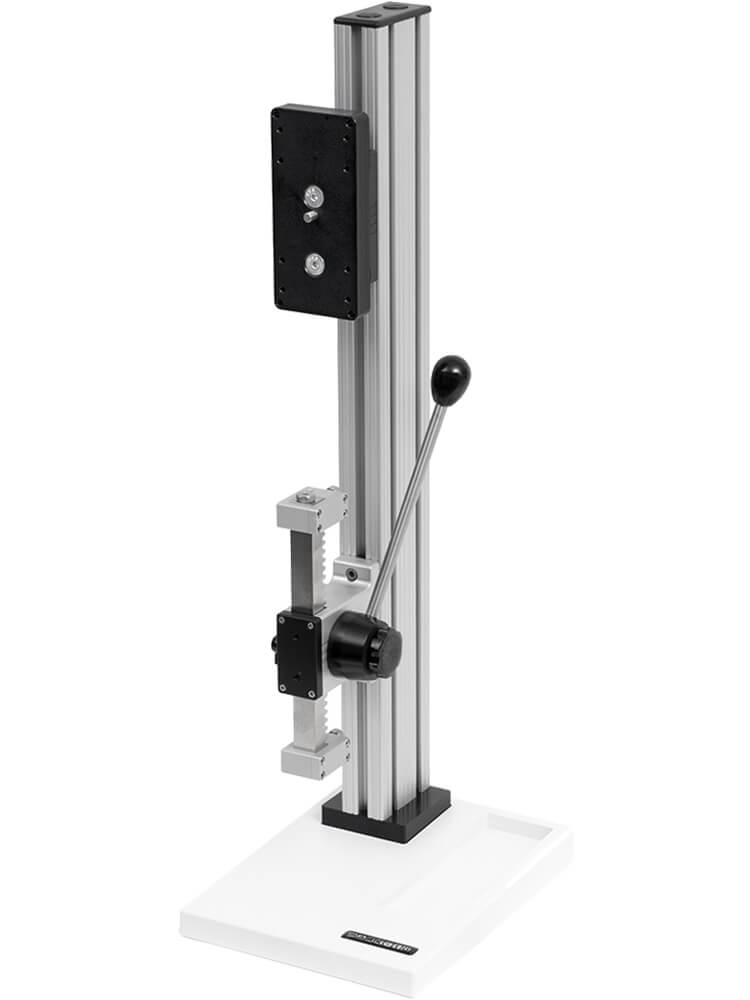

The Mark-10 TSA750 Lever Operated Test Stand Vertical, 750 Lb Capacity is a perfect solution for quick-action pull testing and compression testing of up to 750 lb of tensile or compressive force. Made of rugged, machined aluminum components, this test stand is durable enough for the factory floor, yet precise enough for laboratory environments. The test stand includes adjustable travel stops and a frictional low force brake. Available in vertical and horizontal orientations.
Force Gauge Not Included - Force Gauge Sold Separately Compatible with the following gauges, Series 5, MG, BG, CG, BGI Precision ground rack and pinion mechanism Threaded holes for bench mounting Loading lever can be positioned in 30 increments for ease of operation Adjustable travel stops Adjustable wear plates for smooth, precise motion Optional digital travel display Friction brake Optional Mounting Table Contains a matrix tapped holes for grip and fixture mounting Show with optional equipment. Force Gauge, Digital Display and Grips are sold separately
Maximum force
750 lb
Maximum travel, with stops
3.75" [95 mm]
Maximum travel, without stops
6" [152 mm]
Travel rate
3" [76.2 mm]/lever revolution
Weight
TSA750; 16 lb | TSA750H; 13 lb
Warranty
3 Years
Kit Contents
Mark-10 TSA750 Manual Lever Operated Test Stand G1028 small hook G1038 medium hook G1035 large hook G1042 extra large hook G1009 compression plate, 2u201d dia. G1030 thread adapter, 5/16-18M to #10-32F #10-32 stud with jam nuts (2- two) Thumb screw for force gauges with 0.12 - 500 lbF capacities (4 - four) Thumb screw for force gauges with 1,000 - 2,000 lbF capacities (4 - four) Allen wrench set
More Information
Product Specifications
Maximum force
750 lb
Maximum travel, with stops
3.75" [95 mm]
Maximum travel, without stops
6" [152 mm]
Travel rate
3" [76.2 mm]/lever revolution
Weight
TSA750; 16 lb | TSA750H; 13 lb
Warranty
3 Years
Product Features
Force Gauge Not Included - Force Gauge Sold Separately Compatible with the following gauges, Series 5, MG, BG, CG, BGI Precision ground rack and pinion mechanism Threaded holes for bench mounting Loading lever can be positioned in 30 increments for ease of operation Adjustable travel stops Adjustable wear plates for smooth, precise motion Optional digital travel display Friction brake Optional Mounting Table Contains a matrix tapped holes for grip and fixture mounting Show with optional equipment. Force Gauge, Digital Display and Grips are sold separately
