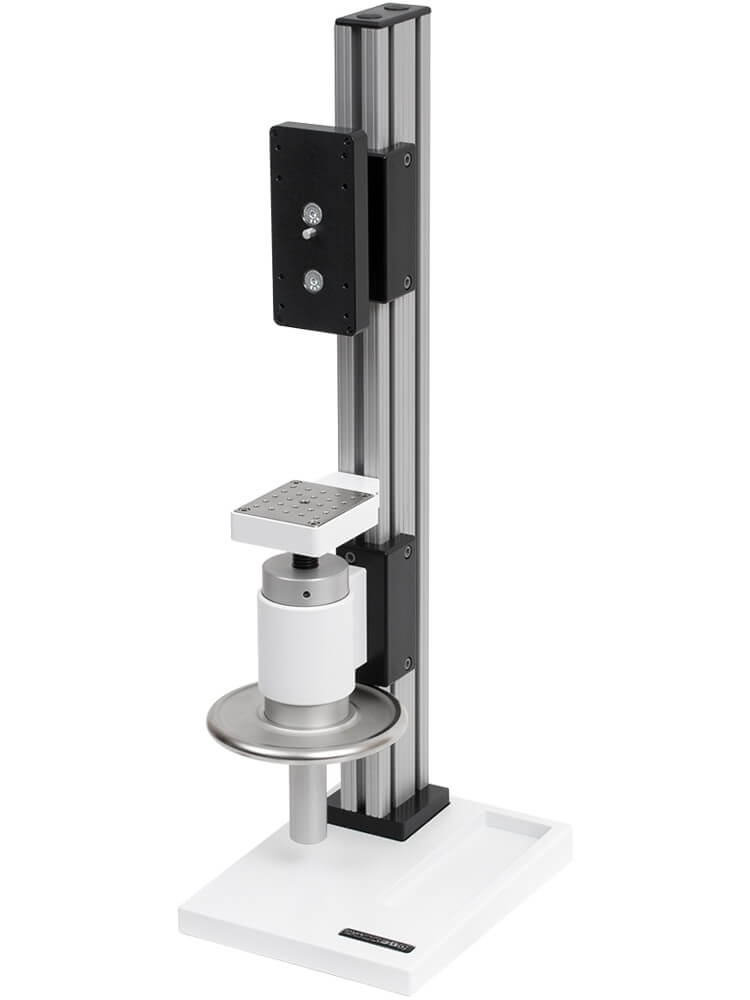

Mark-10 TSC1000 Manual Test Stand Vertical, 1,000 Lb Capacity
The Mark-10 TSC1000 Manual Test Stand Vertical, 1,000 Lb Capacity is built for testing up to 1,000 lb of compression or tension force.A large hand wheel requires little effort, even at high loads, and a precision Acme screw and nut ensure smooth operation over time. The stand includes a loading table with threaded holes for fixture or grip mounting and a solid metal base contains a storage pocket and holes for bench mounting.
Force Gauge Not Included - Force Gauge Sold Separately Compatible with the following gauges: Series 5, MG, BG, CG, BGI Mounting holes for bench mounting Loading table with 25 #10-32 UNF holes for fixture mounting Precision Acme screw and nut Optional digital travel display
Capacity
1,000lbs (4.5Kn)
Stroke
3.5" (89mm)
Travel Rate
0.1" (25.4mm) per rev
Dimensions
6"W x 8"D x 26"H (152mm x 203 mm x 660mm)
Weight
25 lbs (11.4kg)
Compatible Gauges
MG, BG and CG
Warranty
3 years
Kit Contents
Mark-10 TSC1000 Manual Test Stand G1028 small hook G1038 medium hook G1035 large hook G1042 extra large hook G1009 compression plate, 2u201d dia. G1030 thread adapter, 5/16-18M to #10-32F G1044 adapter plate Allen wrench set #10-32 M/M stud with jam nuts Thumb screw for force gauges with 0.12 u2013 500 lbF capacities Thumb screw for force gauges with 1,000 u2013 2,000 lbF capacities
More Information
Product Specifications
Capacity
1,000lbs (4.5Kn)
Stroke
3.5" (89mm)
Travel Rate
0.1" (25.4mm) per rev
Dimensions
6"W x 8"D x 26"H (152mm x 203 mm x 660mm)
Weight
25 lbs (11.4kg)
Compatible Gauges
MG, BG and CG
Warranty
3 years
Product Features
Force Gauge Not Included - Force Gauge Sold Separately Compatible with the following gauges: Series 5, MG, BG, CG, BGI Mounting holes for bench mounting Loading table with 25 #10-32 UNF holes for fixture mounting Precision Acme screw and nut Optional digital travel display
