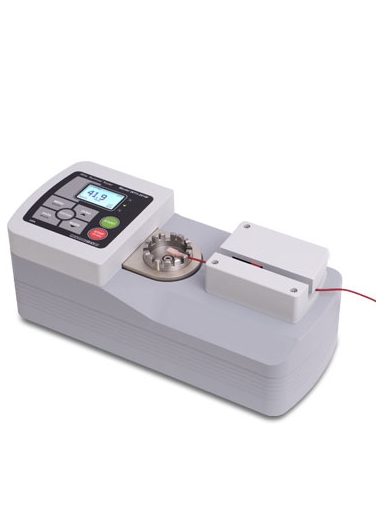

The Mark-10 WT3-201M Motorized Wire Crimp Pull Tester, 200lb / 100kg Capacity is achieved via the available Profiles function, through which multiple test setups may be saved and recalled as required. On-board data storage and statistical calculations is provided for up to 2,000 readings, with available date and time stamp for each saved data point. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs.
200 x 0.1 lbF | 3200 x 2 ozF | 100 x 0.05 kgF | 1,000 x 0.5 N | 1 x 0.0005 kN
Accuracy
±0.2% of full scale
Wire gauge range
AWG30 - AWG 3 [0.01 - 0.25 in (0.3 - 6.3 mm)]
Minimum Sample length
6.5 in [165 mm], excluding termination
Max. elongation
Test speed
Speed setting accuracy
±0.2%
Speed variation with load
±0% [Stepper motor driven]
Power
Universal input 80-240 VAC, 50/60 Hz
Battery Life
Backlight on
Sampling rate
7,000 Hz
Outputs
USB / RS-232
Safe overload
150% of full scale (display shows "OVER" at 110% and above)
Weight
26.5 lb [12.0 kg]
Included items
Power cord, quick-start guide, USB cable, resource CD (USB driver, MESUR™ Lite software, MESUR™gauge DEMO software, and user's guide), and NIST-traceable certificate of calibration.
200 x 0.1 lbF | 3200 x 2 ozF | 100 x 0.05 kgF | 1,000 x 0.5 N | 1 x 0.0005 kN
Accuracy
±0.2% of full scale
Wire gauge range
AWG30 - AWG 3 [0.01 - 0.25 in (0.3 - 6.3 mm)]
Minimum Sample length
6.5 in [165 mm], excluding termination
Max. elongation
Test speed
Speed setting accuracy
±0.2%
Speed variation with load
±0% [Stepper motor driven]
Power
Universal input 80-240 VAC, 50/60 Hz
Battery Life
Backlight on
Sampling rate
7,000 Hz
Outputs
USB / RS-232
Safe overload
150% of full scale (display shows "OVER" at 110% and above)
Weight
26.5 lb [12.0 kg]
Included items
Power cord, quick-start guide, USB cable, resource CD (USB driver, MESUR™ Lite software, MESUR™gauge DEMO software, and user's guide), and NIST-traceable certificate of calibration.
Environmental requirements
40 - 100°F, max. 96% humidity, non-condensating
Warranty
3 years
Product Features
3 Year Warranty
Measures real-time and peak force values
Selectable test speed, w/high speed approach and reverse
Auto-start upon sample insertion
Auto-reverse at sample break or load
USB, RS-232, Mitutoyo (Digimatic), and analog outputs
Automatic reverse / output / data storage / zeroing upon sample break helps automate testing processes
2,000-point data memory with statistics, output, and date and time stamp (date and time stamp is optional)
Password protection prevents unauthorized changes
Pass / fail indicators, audio alerts, and outputs
Save and recall up to 500 profiles for various test requirements (optional function)
Pull to a specified load or maintain load for a specified period of time, as per UL 486A/B (optional functions)
Date / time stamp for all saved data (optional function)
