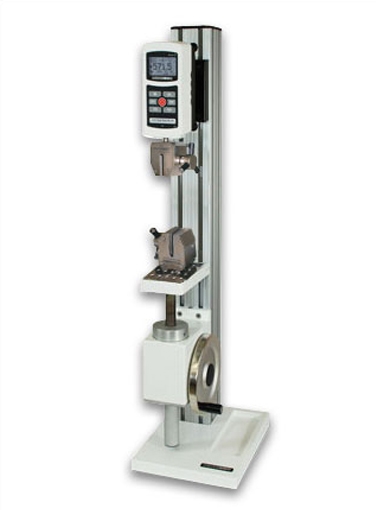

The Mark-10 WTT-1000 Wire Pull Tester 1000 lb Capacity is designed for testing large diameter wires for UL and MIL Spec Testing. Available with a set of heavy-duty self-tightening wedge grips or a combination of wedge grip and vise grip to securely hold your samples. A hook is also included which can be used to grip ring terminals. Measurement accuracy is ±0.1% of full scale, and resolution is 0.5 lbs / 0.2 Kg / 2 N. A large, backlit LCD displays large, legible characters, while the simple menu navigation allows for quick access to the gauges’ many features and configurable parameters. Data can be transferred to a PC or other data collector via USB, RS-232, Mitutoyo (Digimatic), or analog outputs. On-board data memory for up to 1,000 readings is included, as are statistical calculations and output to a PC. Integrated set points with indicators are ideal for pass-fail testing and for triggering external devices such as an alarm, relay, or test stand. The gauges are overload protected to 150% of capacity, and an analog load bar is shown on the display for graphical representation of applied force.
AC or rechargeable battery (NiMH). Low battery indicator appears when battery level is low, and gauge powers off automatically when power reaches critical stage.
AC or rechargeable battery (NiMH). Low battery indicator appears when battery level is low, and gauge powers off automatically when power reaches critical stage.
