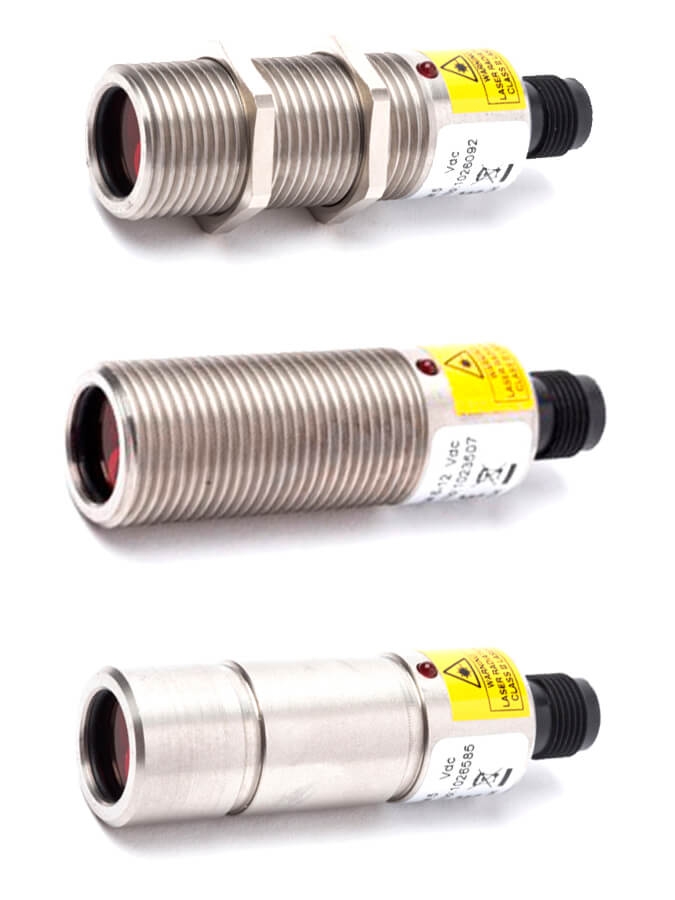

MiniVLS212 - LSR Sensor 8-24vdc - Smooth Stainless Steel Body
The MiniVLS212 - LSR Sensor 8-24vdc - Smooth Stainless Steel Body is primarily designed for speed related applications, including very high speed monitoring
Operating frequency up to 250,000 rpm Long optical range up to 2 metres Wide angle of operation - up to 80 On Target indicator standard Integral Connector Stainless Steel housing Threaded or Plain housing options Reverse polarity & short circuit protected
Laser Optical Range
100 - 200mm
Laser Angle of Incidence
± 80°
Speed Range
0.1 - 250,000rpm
Power Input
5vdc or 8-24vdc @ 30 mA typically
Operating Temp
-10 - +40°C
IP Rating
IP67
Housing Types
M20 threaded or Plain body + fixing slots
Material
Stainless Steel
Connections
Integral Connector
Cables
Several Options
Dimensions
Laser - D 20mm x L 70mm
Output
NPN Pulse
More Information
Product Specifications
Laser Optical Range
100 - 200mm
Laser Angle of Incidence
± 80°
Speed Range
0.1 - 250,000rpm
Power Input
5vdc or 8-24vdc @ 30 mA typically
Operating Temp
-10 - +40°C
IP Rating
IP67
Housing Types
M20 threaded or Plain body + fixing slots
Material
Stainless Steel
Connections
Integral Connector
Cables
Several Options
Dimensions
Laser - D 20mm x L 70mm
Output
NPN Pulse
Product Features
Operating frequency up to 250,000 rpm Long optical range up to 2 metres Wide angle of operation - up to 80 On Target indicator standard Integral Connector Stainless Steel housing Threaded or Plain housing options Reverse polarity & short circuit protected
