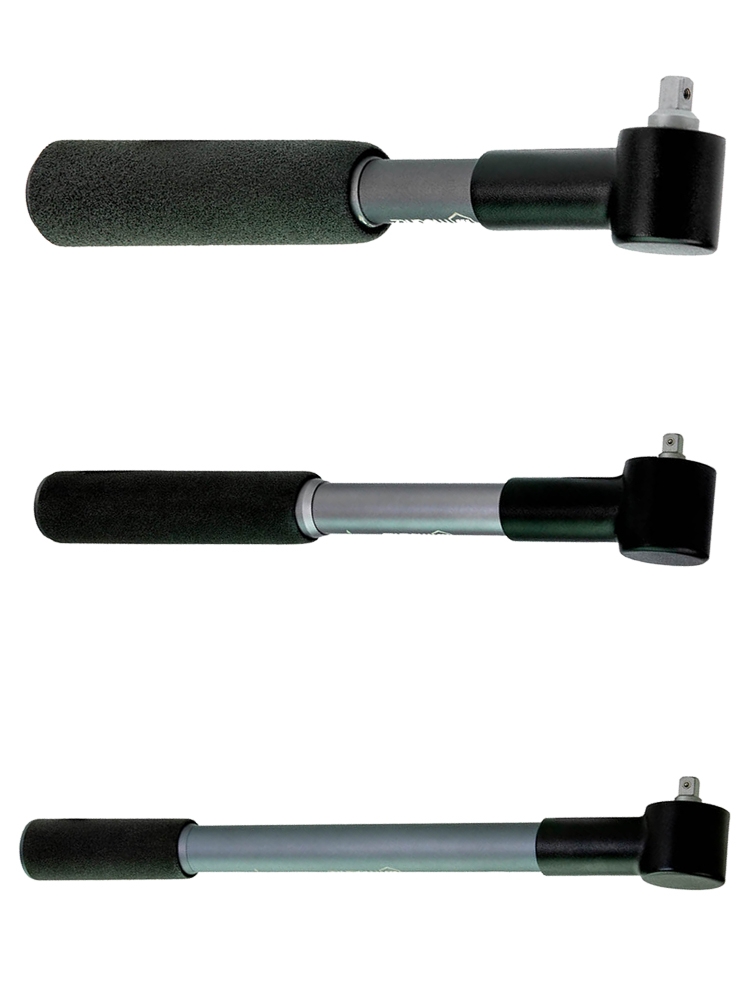

Mountz 076568 FGC-30D Cam-Over Wrench, 4.4 - 22.1 lbf.ft, 6 - 30 N.m, 0.6 - 3.1 kgf.m, 1/4" Sq. Dr.
The Mountz 076568 FGC-30D Cam-Over Wrench, 4.4 - 22.1 lbf.ft, 6 - 30 N.m, 0.6 - 3.1 kgf.m, 1/4" Sq. Dr. is next-generation cam-over wrench by Mountz Torque. When under- or over-torquing puts your products at risk, the FGC wrench delivers the accuracy you need. Safeguarding against fastening failures, the poka-yoke torque wrench prevents over-torque. Implementing this error-proofing wrench removes the operator's influence out of the torque equation and delivers an accurate and repeatable fastening result than a standard click type wrench. You can give Mountz FGC wrenches to any operator and have the confidence that he/she will deliver the correct torque, time after time. Mountz FGC tools stay in calibration 2X longer than the most stringent industry standard (ISO 6789).A click wrench is not a 100 % process safe and is often susceptible to over-torque results. A click wrench does not physically prevent an operator from applying additional force, he/she can unknowingly generate over-torque.
- Cam-over technology ensures correct torque is applied and eliminates fastener breakage issues
- Poka-yoke torque wrench prevents over-torque, as a click wrench cannot
- Error-proofing assembly process
- Safeguards against fastening failures
- Calibration life 2x ISO standards, unmatched by any wrench
- A preset wrench ideal for fastening applications where operators repeatedly assemble parts at the same torque setting
- A preset production torque wrench
- Tool is set to a designated torque value and the correct torque value is consistently applied
- Internal locking mechanism prevents incidental torque setting changes and ensures fastening precision and repeatability
- Tamper-proof internal adjustment. No external adjustment scale - must be preset using a torque analyzer
- Non-length dependent
- Non-strip ratchet head
- Wrench tightens in the CW direction only
- Coated corrosion-resistant stainless steel head
- Anodized aluminum handle
- Ergonomic cushion grip reduces discomfort, fatigue, and risk of injury
- Two-year unlimited warranty
- Lifetime guarantee against manufacturing defects
