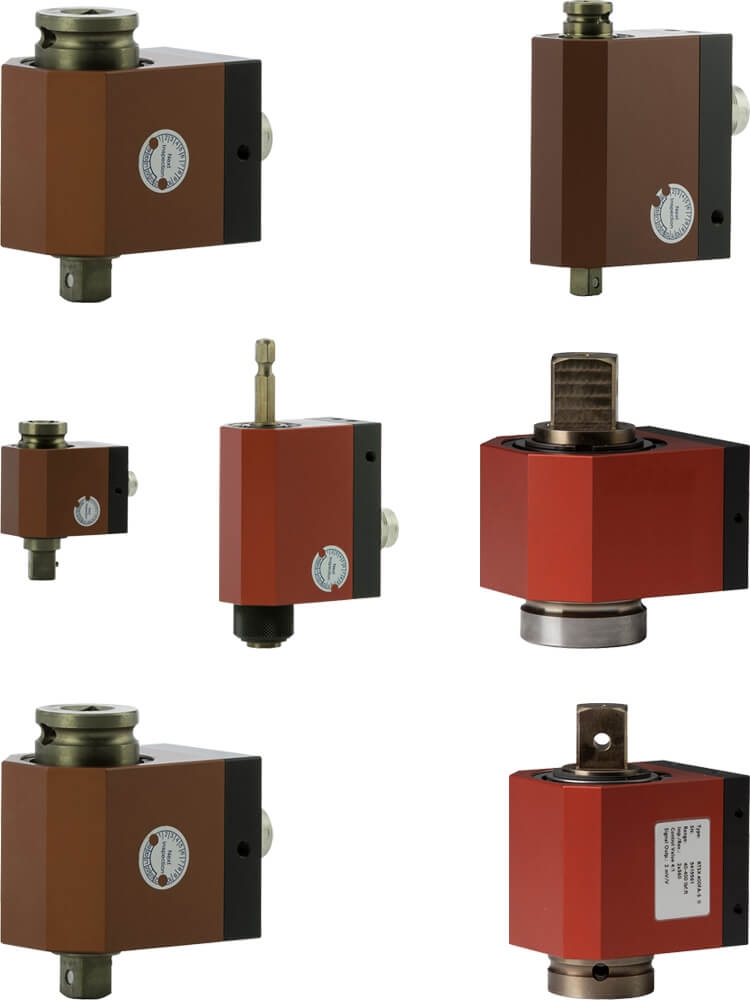

Mountz BLRTSX Brushless Rotary Torque Transducer

SKU

ProductID-149

Grouped product items
Product Name	Qty
Mountz BLRTSX70z-H Brushless Rotary Torque Transducer, Range 10 -70 Oz-in, Drive 1/4", # 170226 $5,253.00
Mountz BLRTSX140z-H Brushless Rotary Torque Transducer, Range 25 - 140 Oz-in, Drive 1/4", # 170227 $5,253.00
Mountz BLRTSX18i-H Brushless Rotary Torque Transducer, Range 12 - 8 Lb-in, Drive 1/4", # 170228 $5,253.00
Mountz BLRTSX50i-H Brushless Rotary Torque Transducer, Range 5 - 50 Lb-in, Drive 1/4", # 170229 $4,950.00
Mountz BLRTSX100i-H Brushless Rotary Torque Transducer, Range 10 - 100 Lb-in, Drive 1/4", # 170231 $4,950.00
Mountz BLRTSX100i Brushless Rotary Torque Transducer, Range 10 - 100 Lb-in, Drive 1/4", # 170232 $4,950.00
Mountz BLRTSX160i-H Brushless Rotary Torque Transducer, Range 16 - 160 Lb-in, Drive 1/4", # 170233 $4,950.00
Mountz BLRTSX160i Brushless Rotary Torque Transducer, Range 16 - 160 Lb-in, Drive 1/4", # 170234 $4,950.00
Mountz BLRTSX18F Brushless Rotary Torque Transducer, Range 2 - 18 Lb-ft, Drive 3/8", # 170235 $5,088.00
Mountz BLRTSX36F Brushless Rotary Torque Transducer, Range 4 - 36 Lb-ft, Drive 3/8", # 170236 $5,088.00
Mountz BLRTSX73F Brushless Rotary Torque Transducer, Range 18 - 73 Lb-ft, Drive 1/2", # 170237 $5,088.00
Mountz BLRTSX118F Brushless Rotary Torque Transducer, Range 12 - 118 Lb-ft, Drive 1/2", # 170238 $5,088.00
Mountz BLRTSX184F Brushless Rotary Torque Transducer, Range 19 - 184 Lb-ft, Drive 3/4", # 170239 $5,610.00
Mountz BLRTSX368F Brushless Rotary Torque Transducer, Range 37 - 368 Lb-ft, Drive 3/4", # 170240 $5,775.00
Mountz BLRTSX738F Brushless Rotary Torque Transducer, Range 74 - 738 Lb-ft, Drive 1", # 170241 $6,435.00
Mountz BLRTSX50i BLRTSX50i Brushless Rotary Transducer, Range 5 - 50 Lb-in, Drive 1/4", # 170230 $4,950.00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

The Mountz BLRTSX Brushless Rotary Torque Transducer is for use with most hand tools, power tools or rotational measurement applications. The common "brush bounce" that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer. The Mountz BLRTSX connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener. Features an instant auto-recognition system of the BLRTSX connected to the PTT.

Product Features

Accuracy +/-.25% of full scale.
Use with most hand tools, power tools or rotational measurement applications.
The common "brush bounce" that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer.
Connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener.
Bi-directional

Product Specifications

Output at Rated Capacity	> 6 Nm [53 lbf.in] rated torque 2 mV/V
Interchanegeability	Matched for mv/v and shunt calibration +0.3% FS
Nonlinearity	+0.2% FS
Excitation Recommended	10V DC or AC RMS
Bridge Resistance	350 ohms
Usable Temperature Range	41-122 degrees F
Safe Overload	125% of rated output

Kit Contents

{{text}}

More Information

Product Specifications

Output at Rated Capacity	> 6 Nm [53 lbf.in] rated torque 2 mV/V
Interchanegeability	Matched for mv/v and shunt calibration +0.3% FS
Nonlinearity	+0.2% FS
Excitation Recommended	10V DC or AC RMS
Bridge Resistance	350 ohms
Usable Temperature Range	41-122 degrees F
Safe Overload	125% of rated output

Product Features

Accuracy +/-.25% of full scale.
Use with most hand tools, power tools or rotational measurement applications.
The common "brush bounce" that plagues the accuracy testing of pulse tools is cured when using a brushless rotary transducer.
Connects between the power tool and the joint. Monitors actual torque being applied from the driver to the fastener.
Bi-directional
