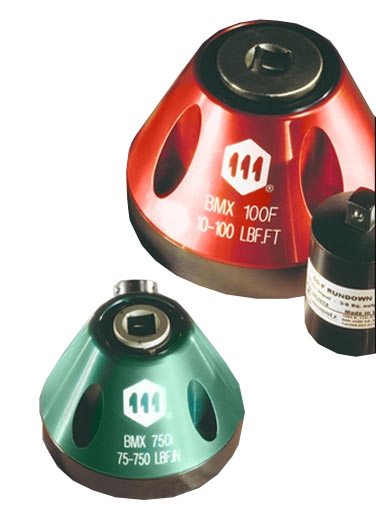

Mountz BMX50i Torque Reaction Transducer, Range 5 - 50 Lb-in, Drive Size 1/4", # 077005
The Mountz BMX50i Torque Reaction Transducer, Range 5 - 50 Lb-in, Drive Size 1/4", # 077005 is ideal for calibrating hand screwdrivers, wrenches, and power tools.
RS-232 and Mitutoyo (Digimatic) outputs Accuracy .25% of full scale ( 0.5% for 10,000F & 20,000F models) Female square drive Bi-directional measurement Mounting brackets available, optional
Rated Output
2mv/v Nominal
Safe Overload
125% of Rated Output
Bridge Resistance
350 Ohms Nominal
Nonlinearity
± .1% of Rated Output
More Information
Product Specifications
Rated Output
2mv/v Nominal
Safe Overload
125% of Rated Output
Bridge Resistance
350 Ohms Nominal
Nonlinearity
± .1% of Rated Output
Product Features
RS-232 and Mitutoyo (Digimatic) outputs Accuracy .25% of full scale ( 0.5% for 10,000F & 20,000F models) Female square drive Bi-directional measurement Mounting brackets available, optional
