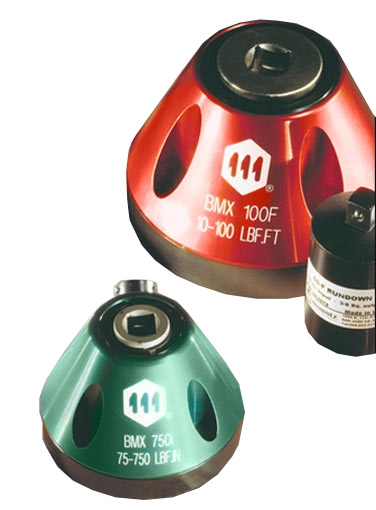

Mountz BMX750i Torque Reaction Transducer, Range 75 - 750 Lb-in, Drive Size 3/8", # 077009
The Mountz BMX750i Torque Reaction Transducer, Range 75 - 750 Lb-in, Drive Size 3/8", # 077009 is ideal for calibrating hand screwdrivers, wrenches, and power tools.
RS-232 and Mitutoyo (Digimatic) outputs Accuracy .25% of full scale ( 0.5% for 10,000F & 20,000F models) Female square drive Bi-directional measurement Mounting brackets available, optional
Rated Output
2mv/v Nominal
Safe Overload
125% of Rated Output
Bridge Resistance
350 Ohms Nominal
Nonlinearity
± .1% of Rated Output
More Information
Product Specifications
Rated Output
2mv/v Nominal
Safe Overload
125% of Rated Output
Bridge Resistance
350 Ohms Nominal
Nonlinearity
± .1% of Rated Output
Product Features
RS-232 and Mitutoyo (Digimatic) outputs Accuracy .25% of full scale ( 0.5% for 10,000F & 20,000F models) Female square drive Bi-directional measurement Mounting brackets available, optional
