Mountz LTT Torque and Angle Analyzer

SKU

ProductID-148

Grouped product items
Product Name	Qty
Mountz LTT-10i Torque and Angle Analyzer, 1-10 lbf-in, Drive Size 1/4" F/Sq. Dr., # 068400 $4,583.00
Mountz LTT-25i Torque and Angle Analyzer, 2.5-25 lbf-in, Drive Size 1/4" F/Sq. Dr., # 068401 $4,583.00
Mountz LTT-50i Torque and Angle Analyzer, 5-50 lbf-in, Drive Size 1/4" F/Sq. Dr., # 068402 $4,583.00
Mountz LTT-100i Torque and Angle Analyzer, 10-100 lbf-in, Drive Size 1/4" F/Sq. Dr., # 068403 $4,583.00
Mountz LTT-250i Torque and Angle Analyzer, 25-250 lbf-in, Drive Size 1/4" F/Sq. Dr., # 068404 $4,583.00
Mountz LTT-50F Torque and Angle Analyzer, 5-50 lbf-ft, Dive Size 3/8" F/Sq. Dr., # 068405 $4,888.00
Mountz LTT-100F Torque and Angle Analyzer, 10-100 lbf-ft, Drive Size 1/2" F/Sq. Dr., # 068406 $4,888.00
Mountz LTT-250F Torque and Angle Analyzer, 25-250 lbf-ft, Drive Size 1/2" F/Sq. Dr., # 068407 $4,888.00

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Details

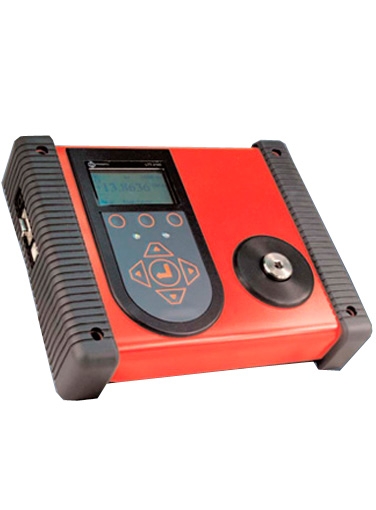

The Mountz LTT Torque and Angle Analyzer is the next generation of torque analyzer. It Provides EZ-Plug & Play. Features an instant auto-recognition system of the transducer connected to the LTT. . The Mountz LTT offers tool testing, graphing capabilities and a graphical menu for easy navigation. It includes three PC Windows based software programs: Torque Meter Interface Program - for sensor calibrations, meter calibration and tool tests, Torque Meter Bootloader - for updating the LTT operating systems and Statistics Calculator - for SPC, CP & CPK calculations.

Product Features

Accuracy +/- 0.5% of reading from 20% to 100% of full scale. Accuracy +/- 1% of reading from 10% to 20% of full scale.
Provides EZ-Plug & Play. Features an instant auto-recognition system of the transducer connected to the LTT.
Built-in Tool Tests operation.
Stores a total of 2500 data points.
Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm). Two units of force measurements: (lbf and kN)
Recommended for all hand screwdrivers, wrenches or power tools.
"Flash" memory allows upgrades to be done by the user in the field & internet through the USB port.
Selection of six operating modes: (Track, Peak, First Peak, Audit, Torque + Angle, and Tool Test).

Product Specifications

Country of Manufacture	US
NIST-Traceable Certification of Calibration	Included

More Information

Product Specifications

Country of Manufacture	US
NIST-Traceable Certification of Calibration	Included

Product Features

Accuracy +/- 0.5% of reading from 20% to 100% of full scale. Accuracy +/- 1% of reading from 10% to 20% of full scale.
Provides EZ-Plug & Play. Features an instant auto-recognition system of the transducer connected to the LTT.
Built-in Tool Tests operation.
Stores a total of 2500 data points.
Seven units of torque measurements: (ozf.in, lbf.in, lbf.ft, cN.m, N.m, kgf.m, kgf.cm). Two units of force measurements: (lbf and kN)
Recommended for all hand screwdrivers, wrenches or power tools.
"Flash" memory allows upgrades to be done by the user in the field & internet through the USB port.
Selection of six operating modes: (Track, Peak, First Peak, Audit, Torque + Angle, and Tool Test).
