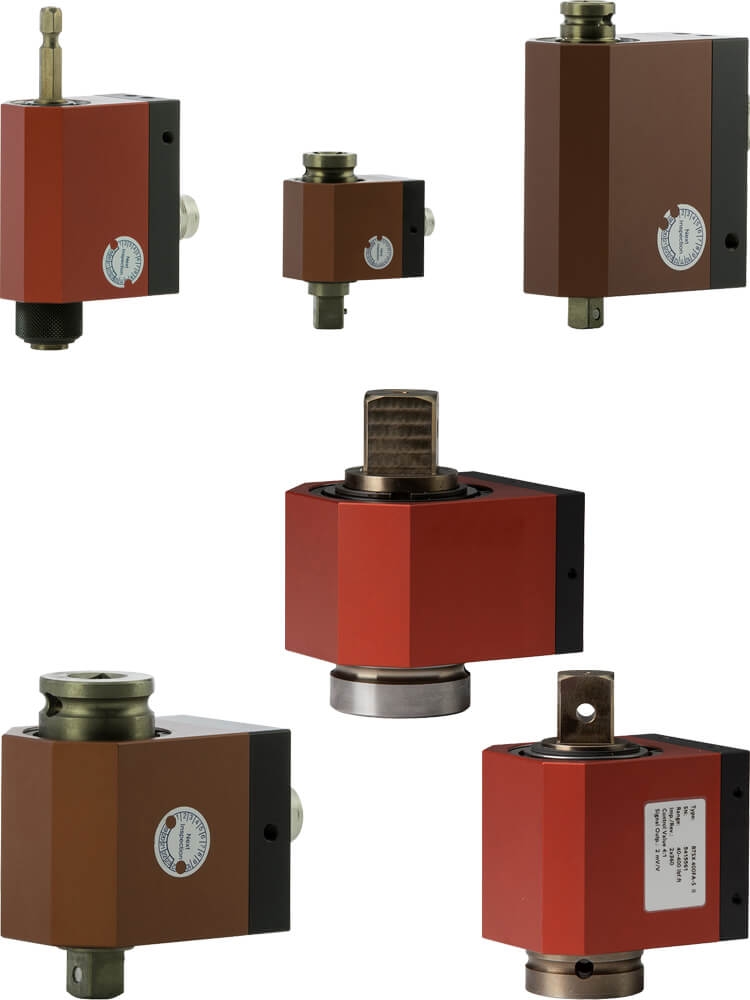

Mountz RTSX-A Rotary Torque and Angle Transducer
The Mountz RTSX-A Rotary Torque and Angle Transducer is ideal to measure actual torque being applied from the driver to the fastener as well as the degrees of rotation. Features an instant auto-recognition system of the RTSX connected to the PTT & LTT. For use with most power tools or rotational measurement applications. Not for use with impact wrenches.
Accuracy .25% of full scale Angle Output:2 channel quadrature, 360 pulses per rotation Ability to measure the rotation angle of a fastener. Joint rate and breakaway torque can be measured too Bi-directional For use with most power tools or rotational measurement applications Supplied with NIST-Traceable Certification of Calibration
Output at Rated Capacity
</= 6 Nm [53 lbf.in] rated torque 1 mV/V > 6 Nm [53 lbf.in] rated torque 2 mV/V
Interchanegeability
Matched for mv/v and shunt calibration +0.3% FS
Nonlinearity
+0.2% FS
Excitation Recommended
10V DC or AC RMS
Bridge Resistance
350 ohms
Usable Temperature Range
41-122 degrees F
Safe Overload
125% of rated output
More Information
Product Specifications
Output at Rated Capacity
</= 6 Nm [53 lbf.in] rated torque 1 mV/V > 6 Nm [53 lbf.in] rated torque 2 mV/V
Interchanegeability
Matched for mv/v and shunt calibration +0.3% FS
Nonlinearity
+0.2% FS
Excitation Recommended
10V DC or AC RMS
Bridge Resistance
350 ohms
Usable Temperature Range
41-122 degrees F
Safe Overload
125% of rated output
Product Features
Accuracy .25% of full scale Angle Output:2 channel quadrature, 360 pulses per rotation Ability to measure the rotation angle of a fastener. Joint rate and breakaway torque can be measured too Bi-directional For use with most power tools or rotational measurement applications Supplied with NIST-Traceable Certification of Calibration
