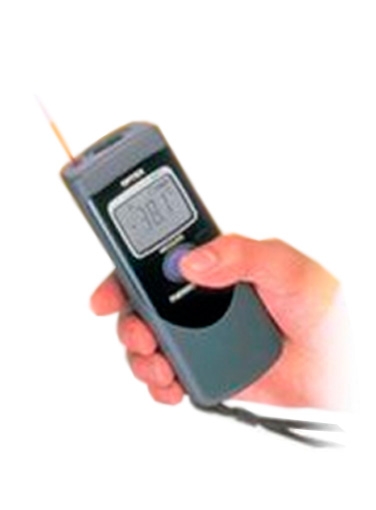

Optex PT-2LD Thermo-Hunter Portable Non-Contact Infrared Thermometer, -40 to +950 Degrees F
The Optex PT-2LD Thermo-Hunter Portable Non-Contact Infrared Thermometer, -40 to +950 Degrees F is a precision instrument that features very quick response: after pushing measuring button, the PT-2LD display shows temperature value in 0.8 sec.
Wide measuring range; - 40 to +510.0C (-40 to +950.0F) Display resolution; 0.1F (0.1C) Field of View; 100/1000mm (D;S = 10;1) Quick response; after pushing measuring button, display shows temperature value in 0.8sec Single touch operation; get measurement, laser guide, and backlight with the push of one button Laser beam guide; easy to confirm the measuring target with a laser beam Auto power off; with releasing the measure button, display is hold and auto off after 20 seconds Compact size; small, light (180 g / 6.5 oz) and fits in your pocket Large LCD display; easy to check temperature with wide display and auto backlight
Measuring Range
-40 to 510.0ºC (-40 to 950.0ºF)
Display Range
-51 to 538.0ºC (-60 to 1000.0ºF)
Field of View
100/1000mm (D;S=10;1) square spot
Optics
mirror/silicon filter
Sensing Element/ Wavelength
Thermopile/8 to 14 µm
Response Time
0.8s/90%
Accuracy (emissivity=0.95 at 25ºC±3ºC)
Less than 0ºC; ±3ºC; 0 to 200ºC; ±2ºC; Above 200ºC; ±1% of reading value (Less than 32ºF; ±6ºF; 32 to 400ºF; ±4ºF; Above 400ºF; ±1% of reading value)
Repeatability
±1.0ºC (2ºF) of reading value
Display Resolution
0.1ºC/ºF
Sighting Method
Blinking laser marker
Emissivity ratio adjustment
0.95 / 0.70 (Switchable)
Back-light function
Available
Temperature Unit
ºC/ºF (Switchable)
Power Supply
2 (two) AA alkaline batteries (included)
Battery Life (alkaline)
Approx. 30 hours
Ambient temperature
0 to 50ºC (32 to 120ºF)
Ambient humidity
35 to 85%Rh (without dew condensation)
Storage temperature
-10 to 60ºC (14 to 140ºF)
Dimensions
140 x 56 x 37mm
Weight (incl. batteries)
180g (6 oz.)
More Information
Product Specifications
Measuring Range
-40 to 510.0ºC (-40 to 950.0ºF)
Display Range
-51 to 538.0ºC (-60 to 1000.0ºF)
Field of View
100/1000mm (D;S=10;1) square spot
Optics
mirror/silicon filter
Sensing Element/ Wavelength
Thermopile/8 to 14 µm
Response Time
0.8s/90%
Accuracy (emissivity=0.95 at 25ºC±3ºC)
Less than 0ºC; ±3ºC; 0 to 200ºC; ±2ºC; Above 200ºC; ±1% of reading value (Less than 32ºF; ±6ºF; 32 to 400ºF; ±4ºF; Above 400ºF; ±1% of reading value)
Repeatability
±1.0ºC (2ºF) of reading value
Display Resolution
0.1ºC/ºF
Sighting Method
Blinking laser marker
Emissivity ratio adjustment
0.95 / 0.70 (Switchable)
Back-light function
Available
Temperature Unit
ºC/ºF (Switchable)
Power Supply
2 (two) AA alkaline batteries (included)
Battery Life (alkaline)
Approx. 30 hours
Ambient temperature
0 to 50ºC (32 to 120ºF)
Ambient humidity
35 to 85%Rh (without dew condensation)
Storage temperature
-10 to 60ºC (14 to 140ºF)
Dimensions
140 x 56 x 37mm
Weight (incl. batteries)
180g (6 oz.)
Product Features
Wide measuring range; - 40 to +510.0C (-40 to +950.0F) Display resolution; 0.1F (0.1C) Field of View; 100/1000mm (D;S = 10;1) Quick response; after pushing measuring button, display shows temperature value in 0.8sec Single touch operation; get measurement, laser guide, and backlight with the push of one button Laser beam guide; easy to confirm the measuring target with a laser beam Auto power off; with releasing the measure button, display is hold and auto off after 20 seconds Compact size; small, light (180 g / 6.5 oz) and fits in your pocket Large LCD display; easy to check temperature with wide display and auto backlight
