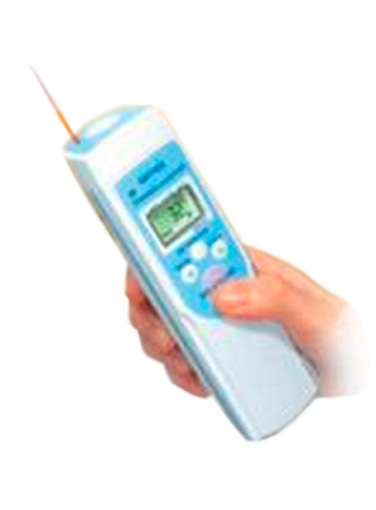

Optex PT-7LD Thermo-Hunter Waterproof Portable Non-Contact Infrared Thermometer, -22 to +392 Degrees F
The Optex PT-7LD Thermo-Hunter Waterproof Portable Non-Contact Infrared Thermometer, -22 to +392 Degrees F is a compact size thermometer designed to fit in your pocket.
Waterproof (IP67) HI/LO Alarms; audible & visual (LED) signals 99-point memory Quick response time; 0.7s Field of View; 66.7/1000mm (D;S = 15;1) Laser beam guide; easy to confirm the measuring target with a laser beam Compact size; small, light (200 g / 7 oz including battery) and fits in your pocket Hygienic body; ABS (antibacterial)
Measuring Range
-30.0 to +200ºC (-22 to +392.0ºF)
Display Range
-40 to +220.0ºC (-40 to +428ºF)
Field of View
66.7/1000mm (D-S=15-1)
Optics
mirror/silicon filter
Sensing Element/ Wavelength
Thermopile/8 to 14 µm
Response Time
0.7s/90%
Accuracy (emissivity=0.95 at 25ºC±3ºC)
-30.0 to 0.0ºC
Temperature unit
ºC/ºF (Switchable)
Display Resolution
1ºC/ºF
Repeatability
±1.0ºC (2ºF) of reading value
Sighting method
Laser beam marker (Class 2)
HOLD time
15s
Back-light function
Available
Emissivity adjustment
0.95 / 0.70 (Selectable)
Continuous measurement mode
On/Off Selectable
Hi/Lo Alarm LED/Buzzer
On/Off Selectable
Memory
99-point memory
Power supply
9V alkaline dry battery (included)
Battery life (alkaline)
Approx. 12 hours
Ambient temperature
0 to 50ºC (32 to 120ºF)
Ambient humidity
35 to 85%Rh (without dew condensation)
Storage temperature
-10 to 60ºC (14 to 140ºF)
Housing
IP67
Material
ABS (antibacterial)
Dimensions
160 x 44 x 52mm (6.3" x 1.7" x 1.65")
Weight (incl. batteries)
200g (7 oz.)
More Information
Product Specifications
Measuring Range
-30.0 to +200ºC (-22 to +392.0ºF)
Display Range
-40 to +220.0ºC (-40 to +428ºF)
Field of View
66.7/1000mm (D-S=15-1)
Optics
mirror/silicon filter
Sensing Element/ Wavelength
Thermopile/8 to 14 µm
Response Time
0.7s/90%
Accuracy (emissivity=0.95 at 25ºC±3ºC)
-30.0 to 0.0ºC
Temperature unit
ºC/ºF (Switchable)
Display Resolution
1ºC/ºF
Repeatability
±1.0ºC (2ºF) of reading value
Sighting method
Laser beam marker (Class 2)
HOLD time
15s
Back-light function
Available
Emissivity adjustment
0.95 / 0.70 (Selectable)
Continuous measurement mode
On/Off Selectable
Hi/Lo Alarm LED/Buzzer
On/Off Selectable
Memory
99-point memory
Power supply
9V alkaline dry battery (included)
Battery life (alkaline)
Approx. 12 hours
Ambient temperature
0 to 50ºC (32 to 120ºF)
Ambient humidity
35 to 85%Rh (without dew condensation)
Storage temperature
-10 to 60ºC (14 to 140ºF)
Housing
IP67
Material
ABS (antibacterial)
Dimensions
160 x 44 x 52mm (6.3" x 1.7" x 1.65")
Weight (incl. batteries)
200g (7 oz.)
Product Features
Waterproof (IP67) HI/LO Alarms; audible & visual (LED) signals 99-point memory Quick response time; 0.7s Field of View; 66.7/1000mm (D;S = 15;1) Laser beam guide; easy to confirm the measuring target with a laser beam Compact size; small, light (200 g / 7 oz including battery) and fits in your pocket Hygienic body; ABS (antibacterial)
