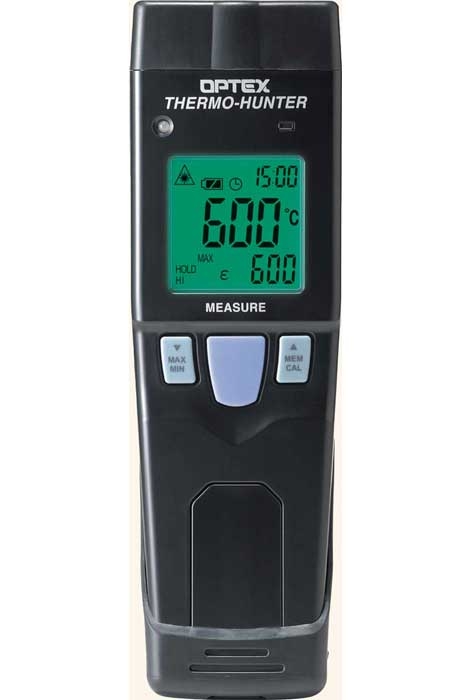

Optex PT-S80 Optex Thermo-Hunter Portable Non-Contact Infrared Thermometer, -22 to +1112 degrees F
The Optex PT-S80 Optex Thermo-Hunter Portable Non-Contact Infrared Thermometer, -22 to +1112 degrees F is designed to temperature measurement of painted surfaces, temperature check in rubber hose manufacturing, Overheating check of coak and Abnormal heating check of printed circuit boards.
EL (electroluminescence) back light Large LED indicator Coaxial laser marker Max/Min display High/Low alarm Includes protective carrying case Selectable emissivity- 0.95 / 0.85 / 0.70 Single memory function Field-Of-View- 30/1000mm (D-S = 33-1)
Measuring Range
-30 to 600C (-22 to +1112F)
Field-Of-View
30mm/1000mm (D-S=33-1)
Optics
Si lens
Sensing Element/ Wavelength
Thermopile/8 to 14 m
Accuracy (e=0.95)
- 30.0 to 0C
Display Resolution
- 30.0 to 199.9C (-22.0 to 391.8F)
Repeatability
1C (2F) of reading value
Sighting method
Coaxial Laser Marker (Class 2)
HOLD time
15s
More Information
Product Specifications
Measuring Range
-30 to 600C (-22 to +1112F)
Field-Of-View
30mm/1000mm (D-S=33-1)
Optics
Si lens
Sensing Element/ Wavelength
Thermopile/8 to 14 m
Accuracy (e=0.95)
- 30.0 to 0C
Display Resolution
- 30.0 to 199.9C (-22.0 to 391.8F)
Repeatability
1C (2F) of reading value
Sighting method
Coaxial Laser Marker (Class 2)
HOLD time
15s
Product Features
EL (electroluminescence) back light Large LED indicator Coaxial laser marker Max/Min display High/Low alarm Includes protective carrying case Selectable emissivity- 0.95 / 0.85 / 0.70 Single memory function Field-Of-View- 30/1000mm (D-S = 33-1)
