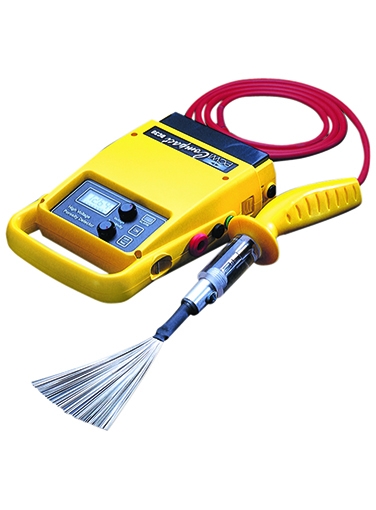

The PCWI DC30-IK Compact DC30 High Voltage Holiday Detector Industrial Kit No. 0930 / DC30IND is used for detection of coating porosity (pinholes or holidays) in dielectric (insulation type) coatings on conductive substrates, including concrete. Suitable for production pipeline coating operations, tank work and structures. Ideal for use on storage tanks, valves and pipelines. Conforms to ASTM G62-87 (1998), NACE RP0274-98, NACE RP0490-2001, NACE RP0188-99, ASTM D4787-93 (1999), JIS G-3491, JIS G-3492, ANSI/AWWA C214-89, ANSI/AWWA C213-94, ISO 2746:1998 & AS3894.1-2002.
Holiday Detector (DC15 or DC30) with clip-on power pack, 10-hour charger, probe handle with neon and 79" (2m) long cable, 2.4" (60mm) connector for flat brush electrodes, 22 (7m) long ground cable with clamp, fan brush, 10" (250mm) wide flat brass wire brush, 18" (450mm) long probe extension, air-operated earphones, shoulder and waist harness, carrying case , operation instructions with conformance certificate.
Holiday Detector (DC15 or DC30) with clip-on power pack, 10-hour charger, probe handle with neon and 79" (2m) long cable, 2.4" (60mm) connector for flat brush electrodes, 22 (7m) long ground cable with clamp, fan brush, 10" (250mm) wide flat brass wire brush, 18" (450mm) long probe extension, air-operated earphones, shoulder and waist harness, carrying case , operation instructions with conformance certificate.
Product Features
Used for detection of coating porosity (pinholes or holidays) in dielectric (insulation type) coatings on conductive substrates, including concrete.
Suitable for production pipeline coating operations, tankwork and structures. Ideal for use on storage tanks, valves and pipelines.
Light weight ABS case
Digital display of applied voltage with integral battery condition indicator
