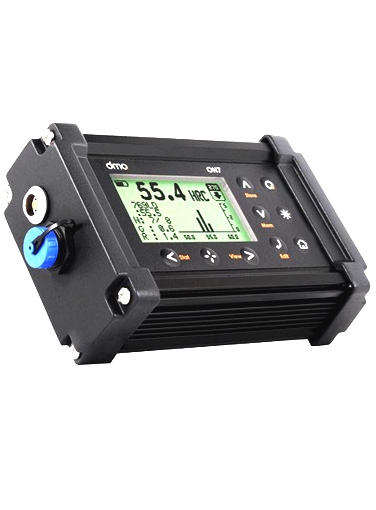

QH7U UCI Heavy Duty Portable Metal Hardness Tester
The QH7U UCI Heavy Duty Portable Metal Hardness Tester is built in an aluminum enclosure for use in the most adverse conditions. They are ideal for heavy industries and mining, and are available in Leeb, UCI, or both methods in one unit.
Complies with ASTM A-956 & ASTM E-140 standards Measure in any direction with auto angle detection CalTag technology on impact devices and probes Graphical representations and statistics Rechargeable batteries Aluminum enclose with rubber sides Programmable quick access key Send data via Bluetooth Color backlight alphanumeric LCD display
Materials (Leeb)
Steel and cast steel, alloy tool steel, stainless steel, grey cast iron, spheroid iron, cast aluminum, brass, copper, bronze and user defined materials
Resolution (Leeb)
1 HL - 1 HB - 1HV - 0.1HRC - 0.1 HRB - 0.1 HRB - 0.1 HS - 1 N/mm2 (Mechanical Resistance)
Accuracy (Leeb)
± 4 HL (0.5% at 800 HL)
Measuring Range (Leeb)
HL 150 - 960
Materials (UCI)
Steel, other metals with calibration blocks
Resolution (UCI)
1HV - 0,1HRC - 0,1HRB - 1HB - 0,1HS -1N/mm2 (Mechanical Resistance)
Accuracy (UCI)
A maximum 5% tolerance in HV
Measuring Range (UCI)
HV 230 - 940

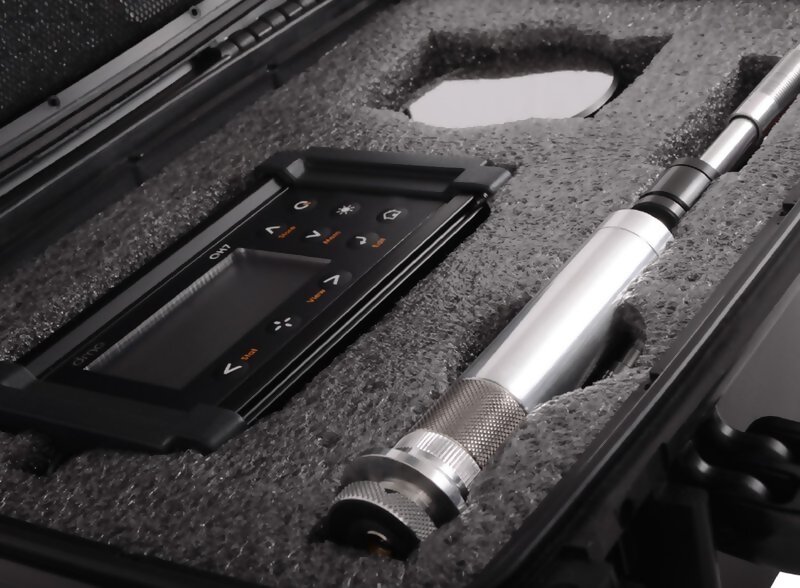

QH7 Heavy Duty Portable Hardness Tester Test block Certificate of conformity CD with software DataCenter FULL USB cable SE520 high impact Instruction Manual Carrying Case
More Information
Product Specifications
Materials (Leeb)
Steel and cast steel, alloy tool steel, stainless steel, grey cast iron, spheroid iron, cast aluminum, brass, copper, bronze and user defined materials
Resolution (Leeb)
1 HL - 1 HB - 1HV - 0.1HRC - 0.1 HRB - 0.1 HRB - 0.1 HS - 1 N/mm2 (Mechanical Resistance)
Accuracy (Leeb)
± 4 HL (0.5% at 800 HL)
Measuring Range (Leeb)
HL 150 - 960
Materials (UCI)
Steel, other metals with calibration blocks
Resolution (UCI)
1HV - 0,1HRC - 0,1HRB - 1HB - 0,1HS -1N/mm2 (Mechanical Resistance)
Accuracy (UCI)
A maximum 5% tolerance in HV
Measuring Range (UCI)
HV 230 - 940
Product Features
Complies with ASTM A-956 & ASTM E-140 standards Measure in any direction with auto angle detection CalTag technology on impact devices and probes Graphical representations and statistics Rechargeable batteries Aluminum enclose with rubber sides Programmable quick access key Send data via Bluetooth Color backlight alphanumeric LCD display
