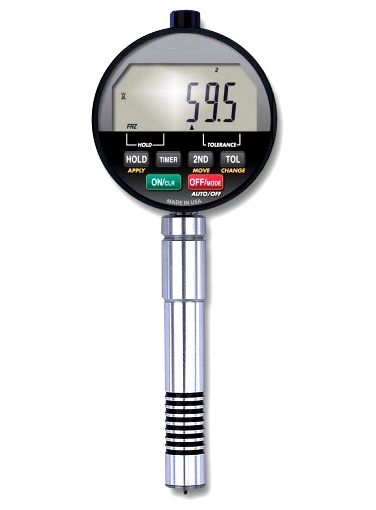

Rex RX-DD-5 Digital Durometer with Adjustable Timer
The Rex RX-DD-5 Digital Durometer with Adjustable Timer is the latest innovation for performing timed hardness testing. The RX-DD-5 is equipped with an adjustable timer and onscreen countdown that can be set to delay from 0-30 seconds. When enabled, the timer function will be automatically activated when the presser foot meets the test specimen. Up to 200 readings can be stored and viewed inside the durometer or downloaded through the USB port.
Conforms to ASTM D-2240 (ISO, DIN and JIS Conformance Also Available) Adjustable Measurement Timer with Onscreen Countdown Store and View up to 200 Measurements High and low buttons for setting tolerance limits Holds reading until reset Dial rotates up to 270 Extra-Large Number Display Download and Collect Data Using USB Smart Cable (Sold Separately) Custom Made Carrying Case Includes NIST Calibration Certificate One Year Warranty
Measruing Range
0 - 100 Units
Resolution
0.1 Units
Accuracy*
±1 durometer unit (A,B,C,D,E,O,DO) | ±2 durometer units (OO,OOO) | ±4 durometer units (M)
Tolerance
± 0.5 at "100" and -0 +1 at "0"
Power Supply
(2) 3V CR-2450 Batteries 115V AC Adapter Included. 230V AC Adapter Optional
Mounting Thread
5/16-40
Dimensions
2.25" x 6.125"
Weight
7.15 oz (202.69 grams)
Warranty
1 year
RS232 Output
9600 baud, no parity, 8 data bits, 1 stop bit (requires external power)
* Note
per ASTM D 2240-05, Sect 9.3
Rex RX-DD-5 Digital Durometer with Adjustable Timer 115V AC Adapter Calibration certificate in a foam-fitted metal Instruction Manual Caring Case
More Information
Product Specifications
Measruing Range
0 - 100 Units
Resolution
0.1 Units
Accuracy*
±1 durometer unit (A,B,C,D,E,O,DO) | ±2 durometer units (OO,OOO) | ±4 durometer units (M)
Tolerance
± 0.5 at "100" and -0 +1 at "0"
Power Supply
(2) 3V CR-2450 Batteries 115V AC Adapter Included. 230V AC Adapter Optional
Mounting Thread
5/16-40
Dimensions
2.25" x 6.125"
Weight
7.15 oz (202.69 grams)
Warranty
1 year
RS232 Output
9600 baud, no parity, 8 data bits, 1 stop bit (requires external power)
* Note
per ASTM D 2240-05, Sect 9.3
Product Features
Conforms to ASTM D-2240 (ISO, DIN and JIS Conformance Also Available) Adjustable Measurement Timer with Onscreen Countdown Store and View up to 200 Measurements High and low buttons for setting tolerance limits Holds reading until reset Dial rotates up to 270 Extra-Large Number Display Download and Collect Data Using USB Smart Cable (Sold Separately) Custom Made Carrying Case Includes NIST Calibration Certificate One Year Warranty
Downloads
comming soon
