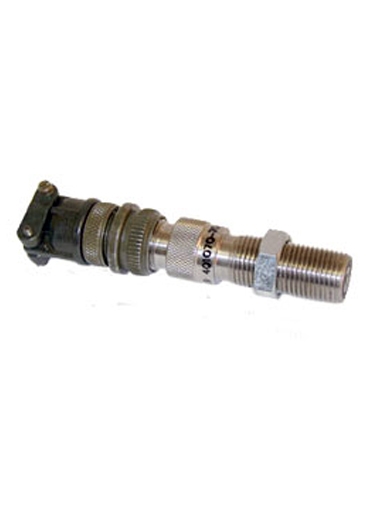

Shimpo 3030AN Magnetic Pick-Up Sensor, requires CABLE-3030
The Shimpo 3030AN Magnetic Pick-Up Sensor, requires CABLE-3030 is designed to mount in a 5/8"-18 threaded hole and is provided with a jam nut for sensor securing.
Sine wave output from change in magnetic to non-magnetic Change in voltage proportional to magnetic flux intensity over time Range of 0.01" (0.25 mm) typical clearance Amphenol connector
Mounting
5/8" – 18 threaded hole
Output
Sine wave
Adjustment
Clearance of 0.1" between the sensor and gear
Temperature Range
-100 to 225 °F (-75 to 107 °C)
More Information
Product Specifications
Mounting
5/8" – 18 threaded hole
Output
Sine wave
Adjustment
Clearance of 0.1" between the sensor and gear
Temperature Range
-100 to 225 °F (-75 to 107 °C)
Product Features
Sine wave output from change in magnetic to non-magnetic Change in voltage proportional to magnetic flux intensity over time Range of 0.01" (0.25 mm) typical clearance Amphenol connector
