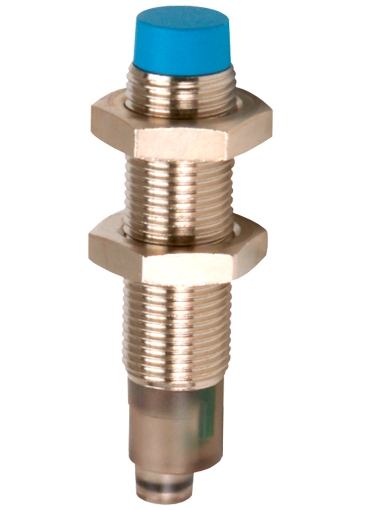

Shimpo BI2-S12 Proximity Sensor
The Shimpo BI2-S12 Proximity Sensor is a three wire DC normally open NPN (sinking) type proximity switch.
- NPN (NO) sinking output 1.5 kHz frequency
- LED indication
- 6.5' (2 m) cable
- 0.08" (2 mm) sensing distance
- NEMA 6 (IP67) rating
| Power |
10 – 30VDC (Positive)
|
| Switching Frequency |
1.5k HZ max
|
| Sensing Distance |
2 mm
|
| Cable Length |
2 meters
|
| Operating Temperature |
- 25 to + 70 °C (-13 to 158 °F) |
More Information
| Product Specifications |
| Power |
10 – 30VDC (Positive)
|
| Switching Frequency |
1.5k HZ max
|
| Sensing Distance |
2 mm
|
| Cable Length |
2 meters
|
| Operating Temperature |
- 25 to + 70 °C (-13 to 158 °F) |
|
| Product Features |
- NPN (NO) sinking output 1.5 kHz frequency
- LED indication
- 6.5' (2 m) cable
- 0.08" (2 mm) sensing distance
- NEMA 6 (IP67) rating
|
