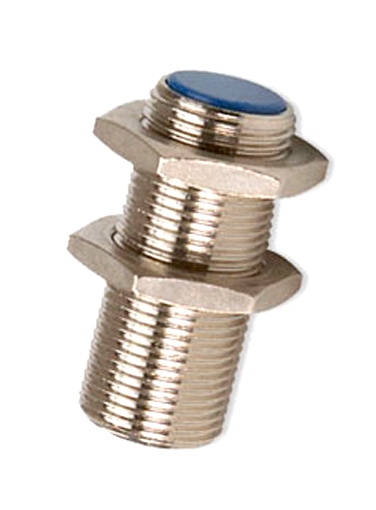

Shimpo DJ2-G Proximity Sensor
The Shimpo DJ2-G Proximity Sensor is an economical solution for detecting metal in front of a sensing surface; metal objects adjacent to or behind will not normally be detected.
NAMUR output 6.5' (2 m) cable 3 kHz frequency 0.08" (2 mm) sensing distance Zero-sensing capability NEMA 6 (IP67) rating
Sensing Distance
2 mm
Switching Frequency
3 KHz
Output
NAMUR
Housing Material
Stainless steel
Sensing Head Material
Crastin
Ambient Temperature
-14° F to +212° F
Supply Voltage
5-25 VDC
Protection ITC
IP67
Electromagnetic Compatibility Compliance
NEMA ICS5-2000
More Information
Product Specifications
Sensing Distance
2 mm
Switching Frequency
3 KHz
Output
NAMUR
Housing Material
Stainless steel
Sensing Head Material
Crastin
Ambient Temperature
-14° F to +212° F
Supply Voltage
5-25 VDC
Protection ITC
IP67
Electromagnetic Compatibility Compliance
NEMA ICS5-2000
Product Features
NAMUR output 6.5' (2 m) cable 3 kHz frequency 0.08" (2 mm) sensing distance Zero-sensing capability NEMA 6 (IP67) rating
