Shimpo DT-107A-12CBL Hand-Held Tachometer / Cable Speed Meter - LED Display

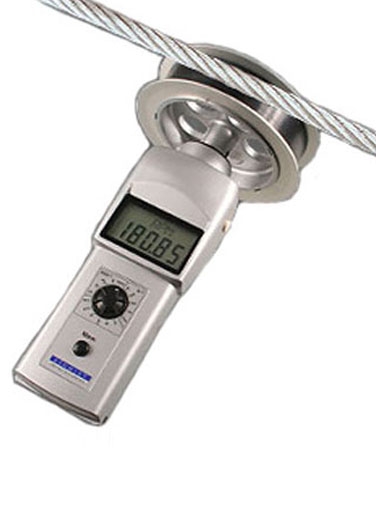

The Shimpo DT-107A-12CBL Hand-Held Tachometer / Cable Speed Meter - LED Display is designed to measure elevator cable speed in feet per minute, meters per minute and other measuring units. It is supplied with a rugged 12” circumference wheel with large flanges to keep the cable in contact with the surface. Delivering superior performance and accuracy over more conventional flat surface wheels. Employing a non slip rubber contact surface, the wheel adds safety and accuracy while measuring speeds on Elevator governor cables, wire and cable reels, extruded tubing and many other applications.
Built-in memory for last, maximum, minimum and 10 separate readings Rugged cast aluminum housing Includes Traceable calibration Certificate LCD Version for use in sunlight and for longest battery life (DT-105A-12CBL) LED version for use in poorly lit or dark environments (DT-107A-12CBL)
Display Range
0.10 to 25,000 rpm with floating decimal
Accuracy
0.10 to 999.99 rpm
Display
DT-105A
Measurement Units
Per Second
Memory System
13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 measurements)
Detection
Optical coupler, 60 pulses/rev.
Update Time
1 second (typical)
Over-Range Indicator
Flashing numerals
Batteries
2 - 1.5 V AA
Battery Life
Approx. 65 hrs. (DT-105A) Life
Operating Temp
32 to 113° F (0 to 45° C)
Accessories Included
2 cone adapters, 1 funnel adapter, 3-1/2" extension shaft, 1 surface speed wheel (6" circumference), carrying case, operating instructions
Product Weight
0.9 pounds (400 grams) (without wheel)
Dimensions
7.3" L x 2.4" W x 1.8" H
Warranty
2 years
Country of Origin
Taiwan
More Information
Product Specifications
Display Range
0.10 to 25,000 rpm with floating decimal
Accuracy
0.10 to 999.99 rpm
Display
DT-105A
Measurement Units
Per Second
Memory System
13 readings are stored in memory and retained for 5 minutes (last, max., min., and 10 measurements)
Detection
Optical coupler, 60 pulses/rev.
Update Time
1 second (typical)
Over-Range Indicator
Flashing numerals
Batteries
2 - 1.5 V AA
Battery Life
Approx. 65 hrs. (DT-105A) Life
Operating Temp
32 to 113° F (0 to 45° C)
Accessories Included
2 cone adapters, 1 funnel adapter, 3-1/2" extension shaft, 1 surface speed wheel (6" circumference), carrying case, operating instructions
Product Weight
0.9 pounds (400 grams) (without wheel)
Dimensions
7.3" L x 2.4" W x 1.8" H
Warranty
2 years
Country of Origin
Taiwan
Product Features
Built-in memory for last, maximum, minimum and 10 separate readings Rugged cast aluminum housing Includes Traceable calibration Certificate LCD Version for use in sunlight and for longest battery life (DT-105A-12CBL) LED version for use in poorly lit or dark environments (DT-107A-12CBL)
